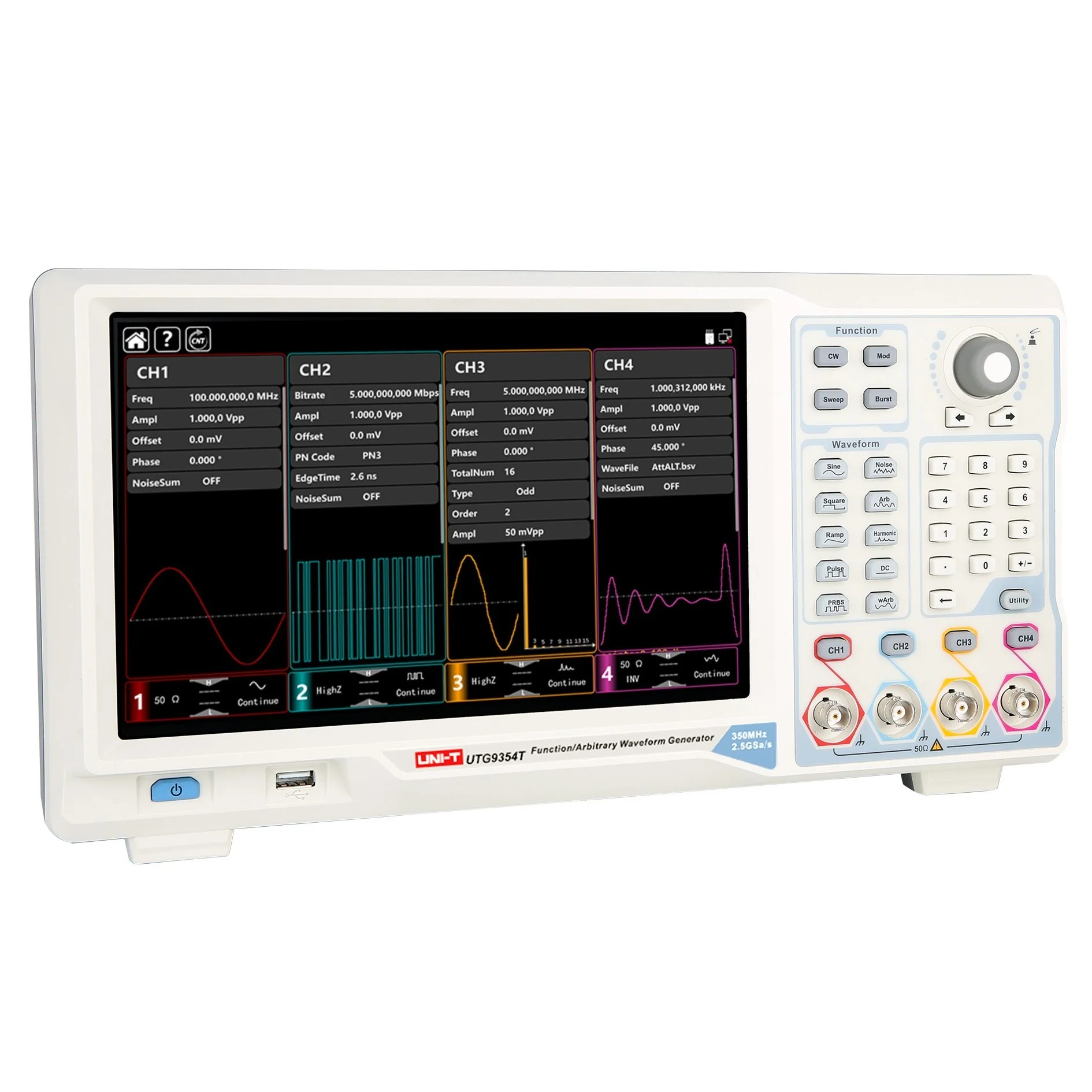

UTG9354T 350MHz 4Ch Elite-Series Arbitrary Waveform Generator
Price Updated soon
In stock
About this item
The UNI-Trend UTG9354T Elite-Series arbitrary waveform generator takes your test bench to the next level. Affordably produce 350MHz signals in a variety of modulations. Transform your testing encounters with the UNI-T UTG9354T Waveform Generator UTG9504T Arbitrary Wave Featuring an array of advanced functionalities, the UNI-T UTG9354T Elite-Series Arbitrary Waveform Generator is your gateway to precision, versatility, and unparalleled performance. Step up your testing capabilities with the UTG9354T waveform generator, a genuine game-changer for your engineering pursuits.
Product Features
- Maximum Frequency: 350MHz
- Channel: 4
- Arbitrary Wavelength: 64Mpts
- Maximum Sampling Rate: 2.5GSa/s
- Vertical Resolution: 16bits
- Minimum Edge Time: within 1.5ns, adjustable duty ratio
- Maximum Output Swing: 20Vpp
- Digital Protocol Output: SPI, I2C, UART
- Screen Display: 10.1-inch capacitive touch screen, 1280*800 resolution
Product Applications
- Waveform Acquisition and Analysis.
- Field Diagnostics and Signal Troubleshooting.
- Portable Electrical Measurements (Voltage, Current, Resistance).
- Oscilloscope-Based Frequency Spectrum Analysis (FFT).
- Multimeter Testing for Electronic Components.
- Signal Monitoring in Industrial and Educational Settings.
- Transient and Pulse Analysis with Peak Detect.
- Measurement of Signals with DC Offset.
- Noise Filtering and Smoothing with AVG Mode.
- Firmware Updates and PC-Based Data Handling.
