UTG2122X 120MHz 2Ch Advanced-Series Arbitrary Waveform Generator
Price Updated soon
In stock
About this item

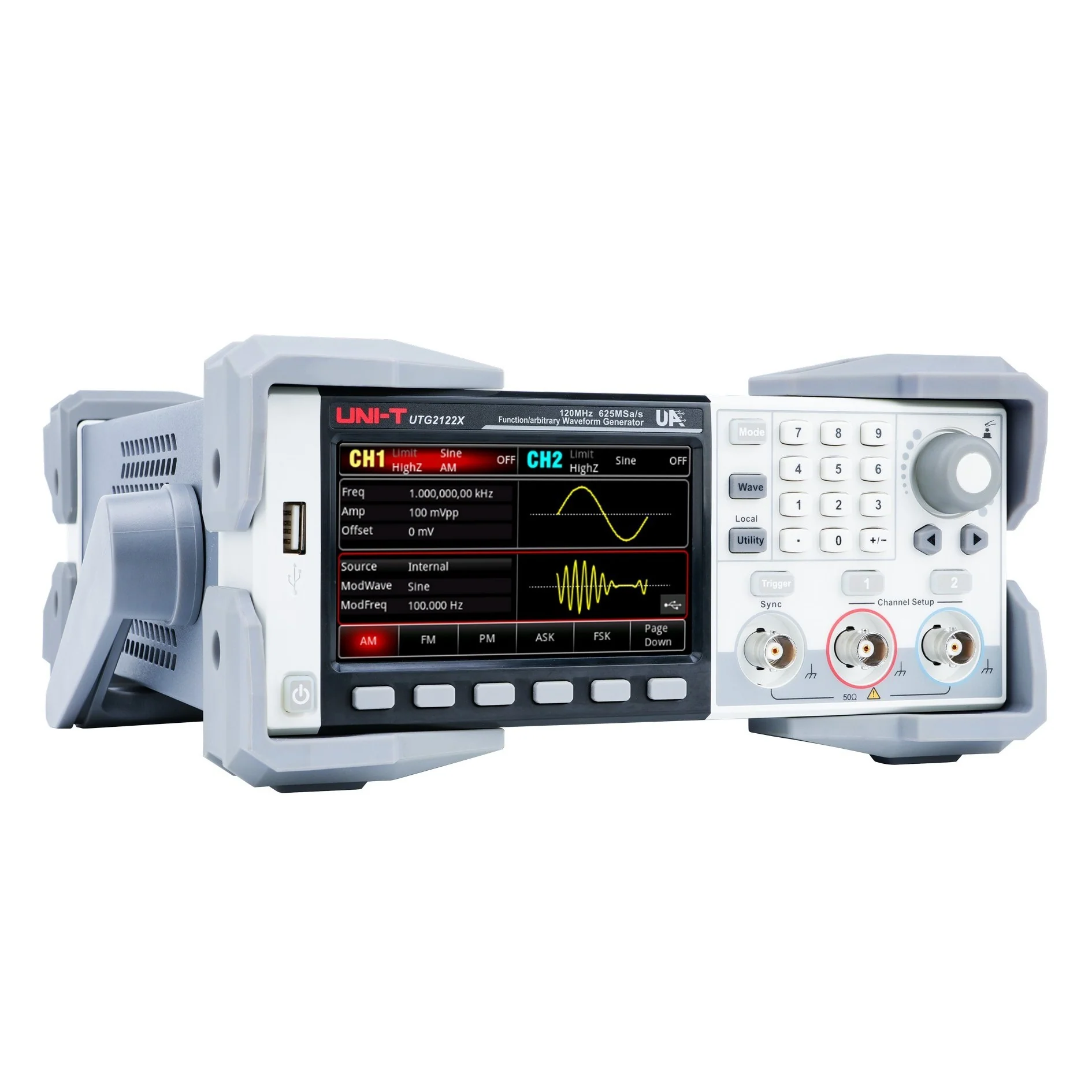

Experience Precision and Versatility with the UNI-T UTG2122X Arbitrary Waveform Generator The UNI-T UTG2122X is a high-performance arbitrary waveform generator designed for engineers and researchers who require precision, versatility, and efficiency in signal generation. With a maximum output frequency of 120 MHz and 16-bit vertical resolution, it delivers superior accuracy for a wide range of applications, from RF testing to analog circuit simulations. The generator supports multiple basic and advanced waveforms, including sine waves, square waves, pulses, and arbitrary waveforms, while also offering advanced expression output capabilities for mathematical modeling and waveform synthesis.
Product Features
- Frequency Range: 1 μHz - 120 MHz (Other models - UTG2062X: 60 MHz, and UTG2082X: 80 MHz)
- Channels: 2
- Sampling Rate: 1.25 GSa/s
- Vertical Resolution: 16-bits
- Low Distortion: <0.07% (DC - 20 kHz, 1 Vpp)
- Waveforms: Sine, Square, Pulse, Ramp, 200 built-in Arbitrary, Harmonic, Expression, PRBS, Noise, DC
- Modulations: 15 analog and digital modulations
- Display: 4.3-Inch Touch Screen
- Square/Pulse wave: 1 μHz - 50 MHz
- Hardware frequency counter: 7-bit, 100 mHz - 200 MHz
- Programmable: Supports SCPI programmable instrument standard commands

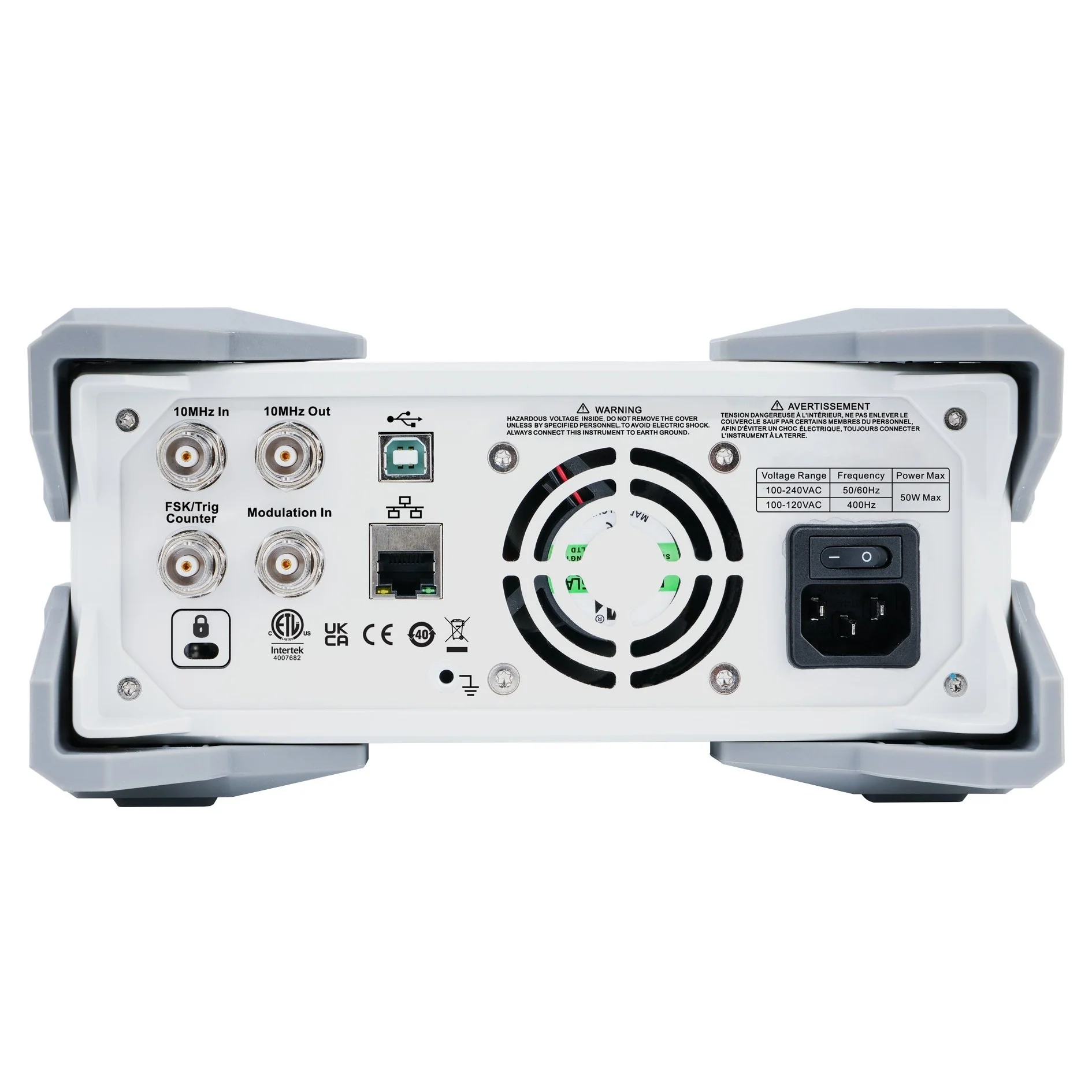

- Interfaces: USB Host/Device, LAN, 10 MHz Ext In, 10 MHz Ext Out, Ext. Analog Mod In, Ext Mod/Trigger Out, Sync Out
