UTG2062B 60MHz 2Ch Advanced-Series Arbitrary Waveform Generator
Price Updated soon
In stock
About this item

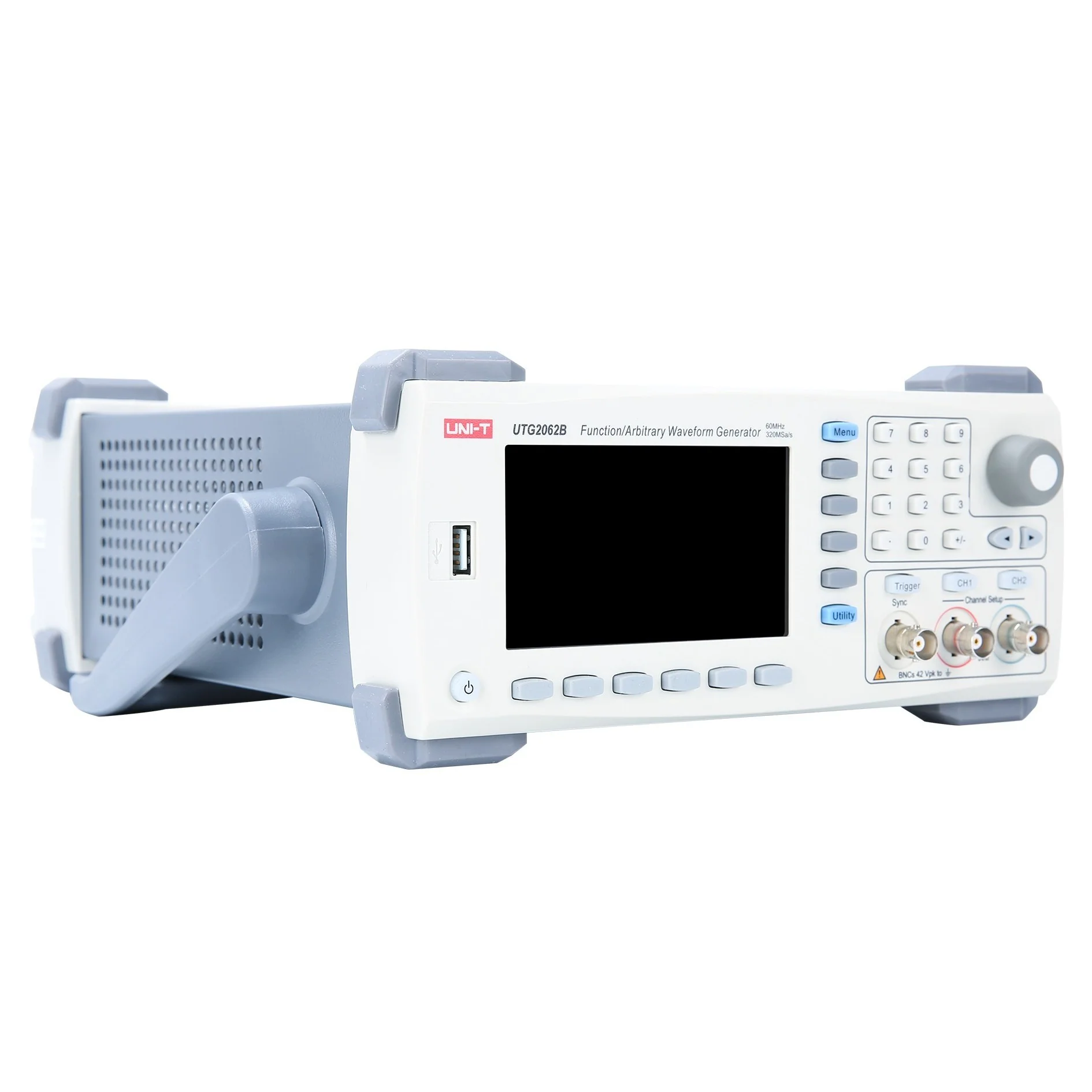

The UNI‑T UTG2062B is a dual‑channel DDS waveform generator engineered for precise signal synthesis up to 60 MHz. Each independent channel delivers sine, square, ramp, pulse, noise, DC, arbitrary, harmonic, and programmable expression waveforms with 1 µHz frequency resolution. Its 16‑bit vertical resolution and 1.28 GSa/s sampling rate (320 MSa/s interpolation) ensure low distortion (< 0.2% THD on DC–20 kHz) and sub‑13 ns rise/fall times on square and pulse outputs. The instrument’s 4.3″ TFT color display, multi‑function knob, and soft‑key interface streamline setup, while USB Host (≤ 32 GB), USB Device, LAN, and 10 MHz I/O ports support data transfer and synchronization. Advanced built‑in modes include burst, sweep (linear/log), and 13 standard modulation schemes (AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM). Nonvolatile memory holds 160 arbitrary waveforms (8 pts–16 M pts), with external USB drives accommodating additional files. Encased in a compact 305 × 230 × 93 mm chassis with forced‑air cooling, it operates on 100–240 VAC and meets CAT II safety. The UTG2062B is ideal for educational labs, R&D, automated test systems, and production environments requiring versatile, high‑fidelity waveform generation.
Product Features
- Dual‑channel independent outputs.
- 1.28 GSa/s sampling rate, 16‑bit vertical resolution.
- Sine to 60 MHz; square/pulse to 25 MHz; ramp to 3 MHz; 1 µHz resolution.
- 160 nonvolatile arbitrary waveforms (8 pts–16 M pts).
- 18‑function expression generator (max 160 chars).
- Burst (1–1,000,000 cycles), sweep (1 ms–500 s, linear/log).
- Modulation: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM.

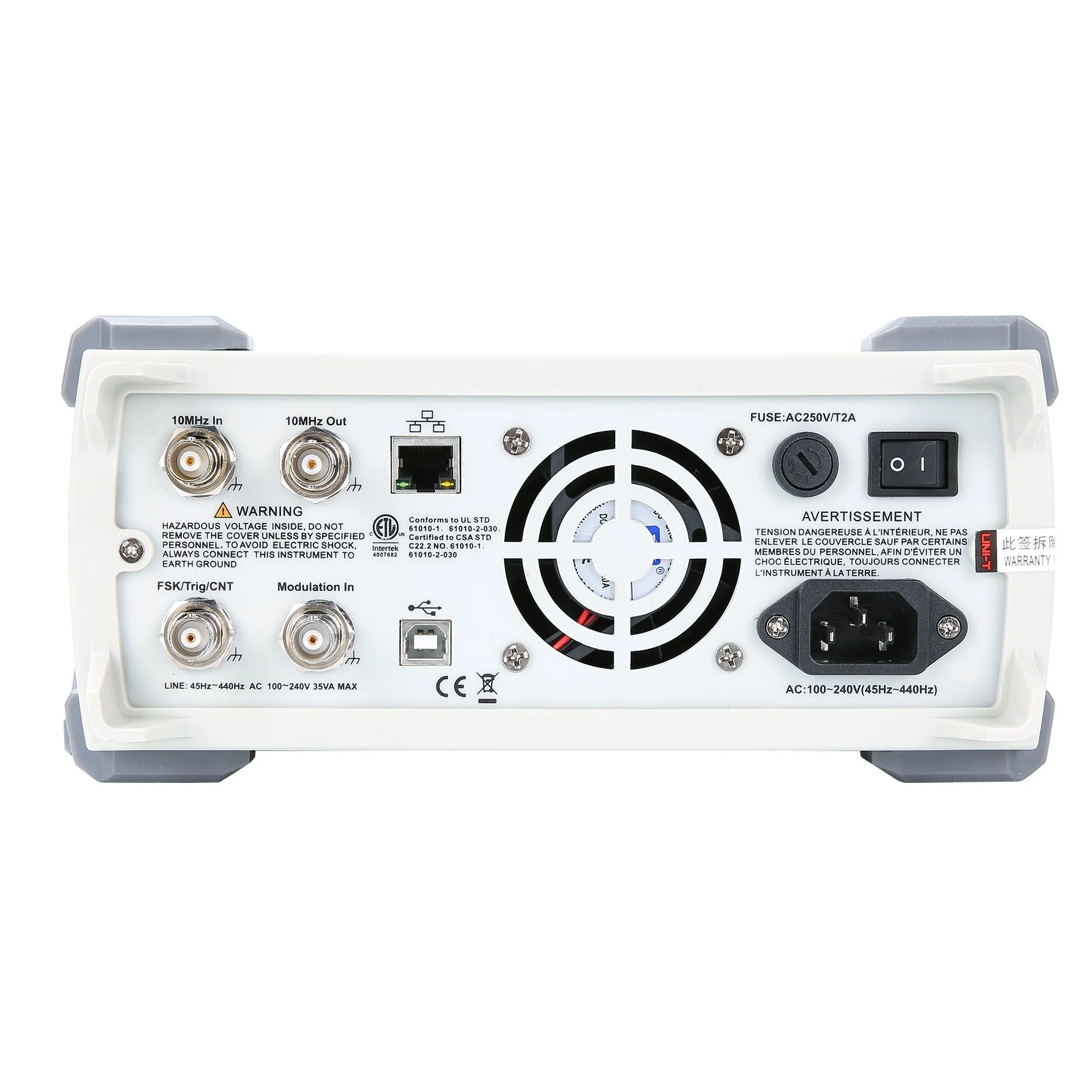

- USB Host (≤ 32 GB), USB Device, LAN, 10 MHz In/Out.

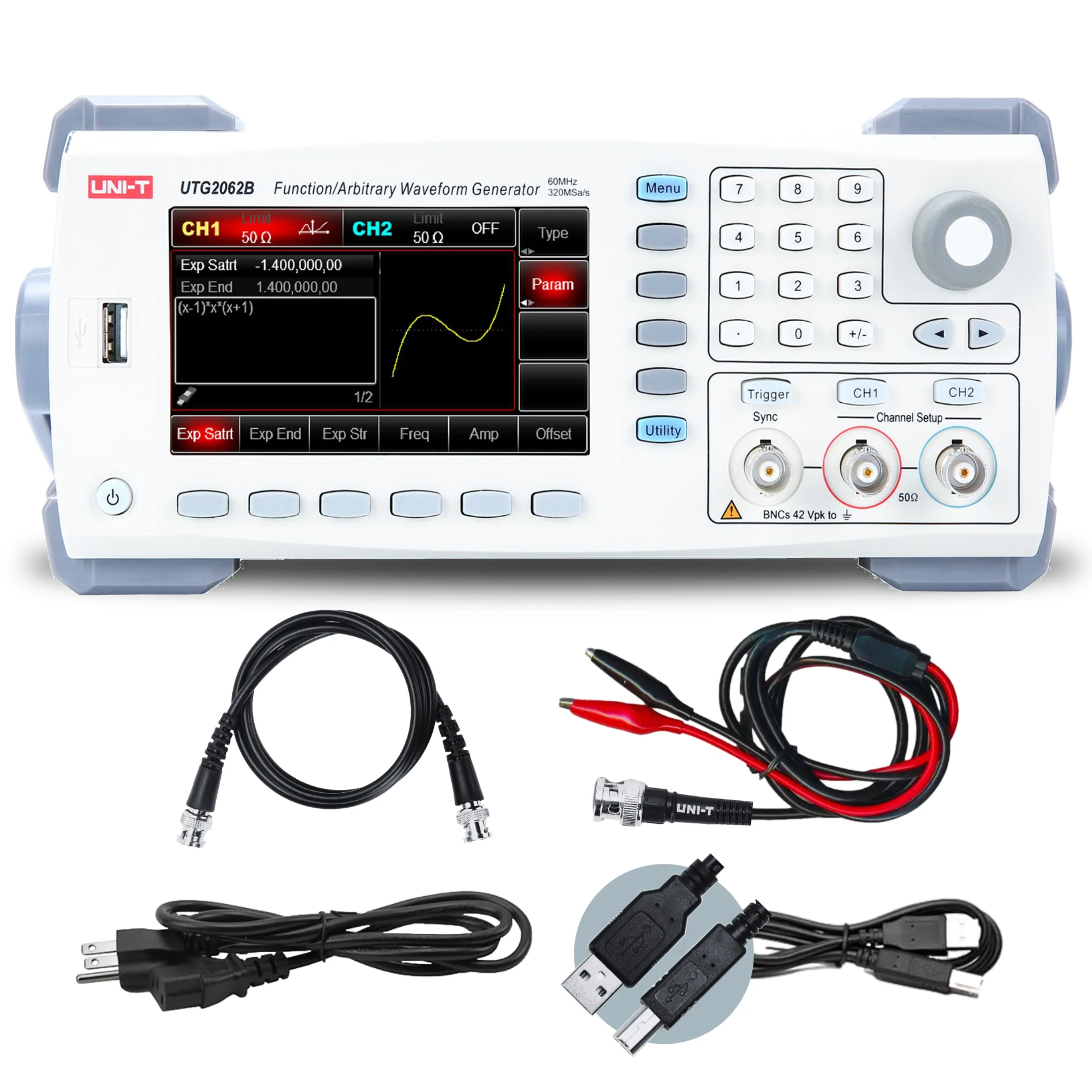

- 4.3″ TFT display with knob/soft‑key control.
- Compact 305×230×93 mm, forced‑air cooling, CAT II safety, 100–240 VAC.
Product Applications
- Education and Training.
- Electronic Circuit Testing.
- Communication Systems R&D.
- Signal Simulation.
- Audio Equipment Testing.
- Embedded System Development.
- Industrial Product Testing.
- Scientific Research.
- Medical Device Testing.
- Sensor and Actuator Evaluation.
