UTS3060A 6.0GHz Performance-Series Signal Analyzer
Price Updated soon
In stock
About this item

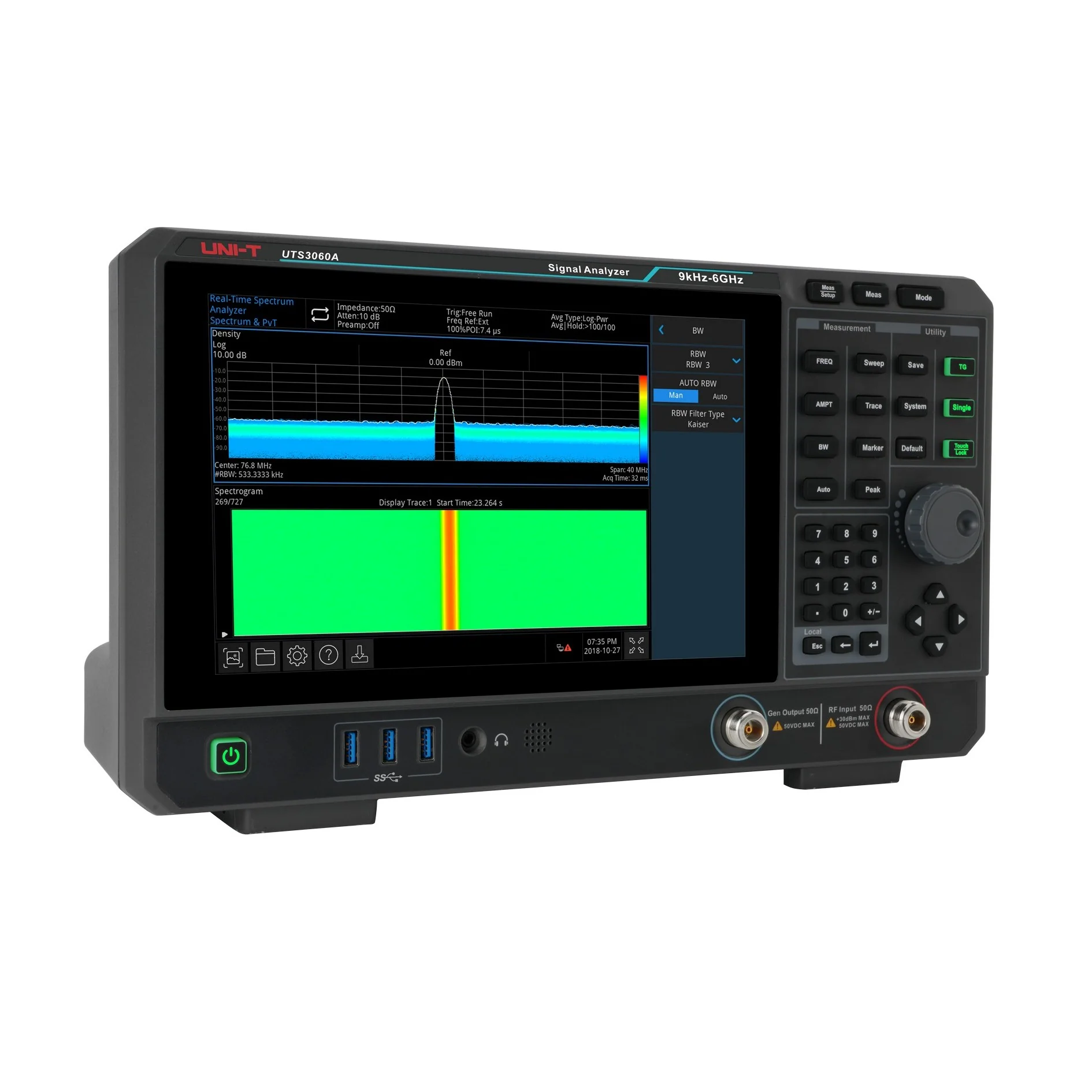

The UNI-T UTS3060A signal analyzer enables electrical and RF engineers to quickly diagnose and resolve complex signal issues with real-time spectrum analysis and advanced features like vector network and EMI analysis. Its high precision and wide frequency range streamline troubleshooting, optimize signal performance, and ensure compliance with industry standards. The UNI-T UTS3060A Signal Analyzer is engineered to meet the needs of RF analysis professionals in telecommunications, engineering, and research. As a part of the advanced UTS3000A series, the UTS3060A provides a broad frequency range, sophisticated real-time analysis, and precision measurements. This model reaches up to 6 GHz, with additional options available in the UTS3036A (3.6 GHz) and UTS3084A (8.4 GHz) models, enabling selection based on specific application needs.
Product Features
- Frequency Range: 9 kHz to 6 GHz
- Displayed Average Noise Level (DANL): -165 dBm/Hz (typical)
- Phase Noise: < -100 dBc/Hz at 10 kHz offset (typical)
- Resolution Bandwidth (RBW): 1 Hz to 10 MHz
- Sweep Points: Up to 40,001
- Real-Time Bandwidth (Optional): 40 MHz
- Vector Network Analysis: Standard with S11 and S21 parameter measurements
- Analog and Digital Signal Demodulation Support: AM, FM, PM, and various digital modulation formats
- Screen: 10.1-inch 1280 x 800 HD multi-touch display
- Connectivity: LAN, USB, HDMI, and SCPI remote control support
Product Applications
- Broad Frequency Range (9 kHz to 6 GHz)
- High Sensitivity and Accuracy
- Real-Time Spectrum Analysis for Intermittent Signals
- Advanced Trigger Options
- Multi-Touch Display Interface for Ease of Use
