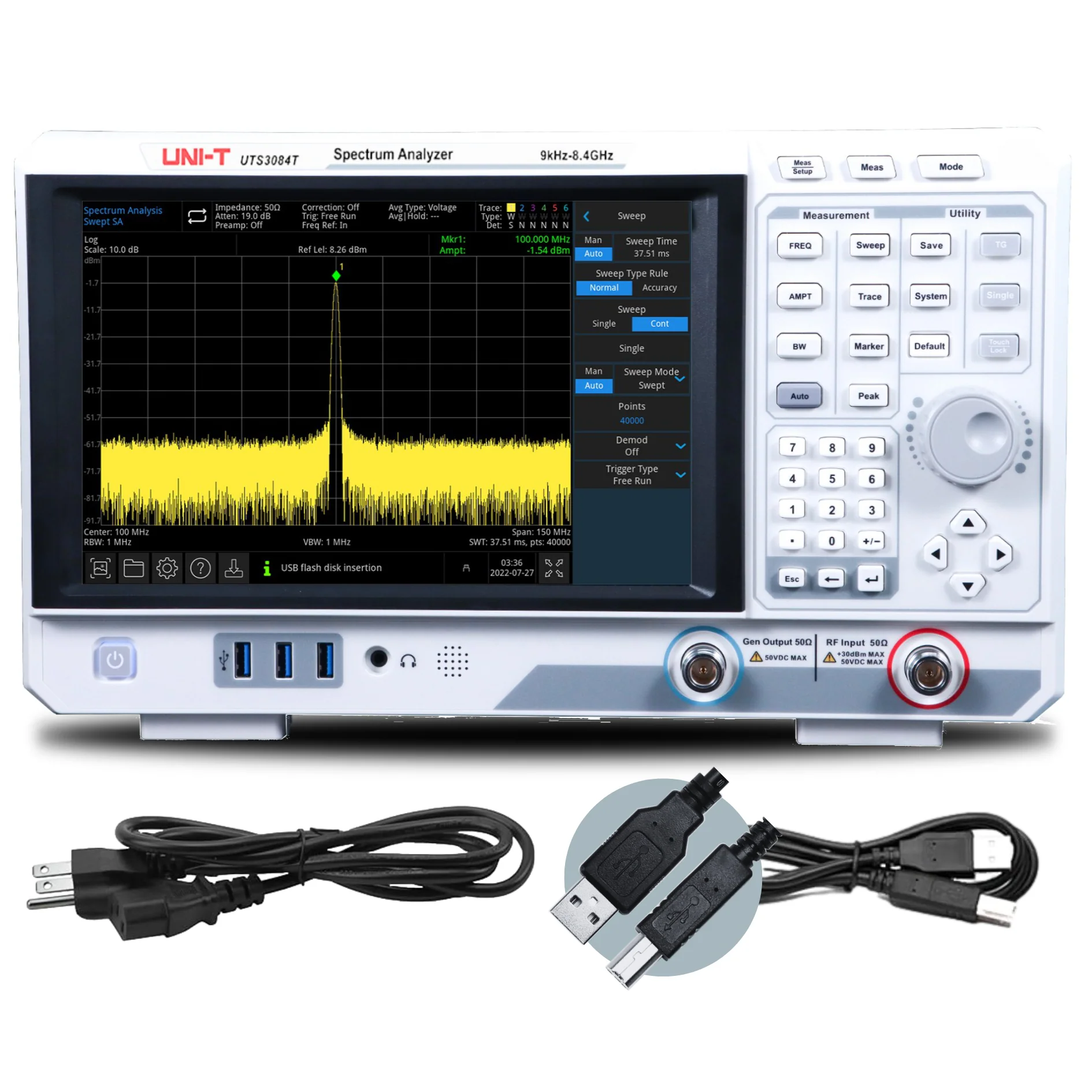

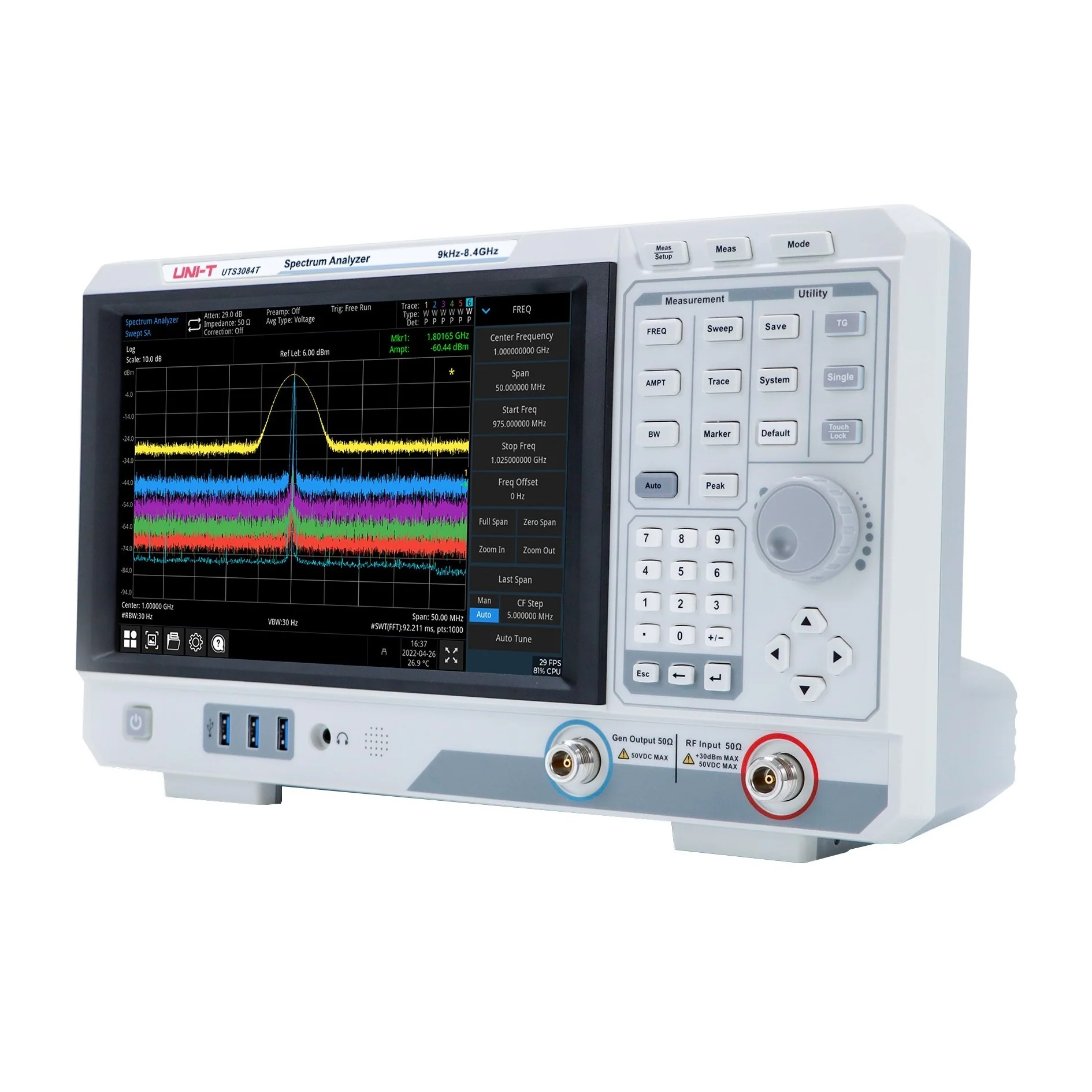

UTS3084T 8.4GHz Performance-Series Spectrum Analyzer with Tracking Generator
Price 294,777.00 EG
In stock
About this item
The UNI-Trend UTS3084T Performance-Series Spectrum Analyzer includes a tracking generator and is an affordable 8.4GHz signal analyzer for EMI pre-compliance testing and a variety of other applications. The UNI-T UTS3084T caters to the discerning needs of electrical and RF engineers, offering an unparalleled range with its impressive 8.4GHz top frequency. In the realm of high-frequency signal analysis, this spectrum analyzer stands as an essential companion, elevating your capabilities to new heights. Whether you're an RF designer, telecommunications engineer, or radar specialist, the UTS3084T's expansive 8.4GHz range equips you with the precision to tackle complex engineering challenges head-on.
Total price 294,777.00 EG
Product Features
- Frequency Measurement Range:9 kHz to 8.4 GHz
- Displayed Average Noise Level (DANL): As low as -161 dBm (Typical)
- Phase Noise: < -98 dBc/Hz (Offset 10 kHz, Typical)
- Full Amplitude Accuracy: < 0.7 dB
- Sweep Points: Up to 40,001
- Minimum Resolution Bandwidth (RBW): 1 Hz
- Advanced Function: One key measurement support (Optional)
- EMI Pre-compliance Analysis Function: Supported (Optional)
- Analog Demodulation Analysis: Supported (Optional)
- Tracking Source Output: Supported
- Display: 10.1-inch 1280 × 800 HD Capacitive Touchscreen
- SCPI Support: Standard commands for programmable instruments, USB/LAN interface
