UTS3036T+ Spectrum Analyzer
Price Updated soon
In stock
About this item
The UNI-T UTS3036T+ is a competitively priced 3.6GHz spectrum analyser part of the UTS3000T+ series. This device is well suited for weak signal tests, which are easily affected by noise, as the UTS3000T+ series features a great sensitivity and a DANL as low as -161dBm, which is low enough to be unnoticeable in typical use. The UTS3036T+ offers 10001 sweep points, which makes it easier to detect difficult signals. Additionally, this spectrum analyser features a tracking generator and a high 3MHz RBW. A key selling point of the UTS3000+ series is the price. The series offers great specifications for the price, matching or coming close to much pricier spectrum analysers. However, this series excludes some features which you might find on other analysers, such as a web server. The spectrum analysers can be connected to a computer through USB and LAN interfaces and support the SCPI programming protocol. The device features a 10.1" touchscreen LCD with intuitive gesture controls designed to simplify operations. The UTS3000T+ series also supports the Tekbox EMCview software, designed for the user-friendly execution of EMC pre-compliance testing of products. Finally, the UTS3036T+ may also be easily upgraded with other software options.
Product Features
- Frequency Range: 9 kHz to 3.6 GHz – ideal for wireless, broadcast, and RF component testing
- Resolution Bandwidth (RBW): 1 Hz to 3 MHz – for high-resolution spectrum analysis
- Phase Noise: -98 dBc/Hz @10 kHz offset – low-noise performance for accurate measurements
- DANL (Displayed Average Noise Level): As low as -161 dBm – excellent for detecting low-level signals
- Tracking Generator: Yes – enables scalar network analysis and filter characterization

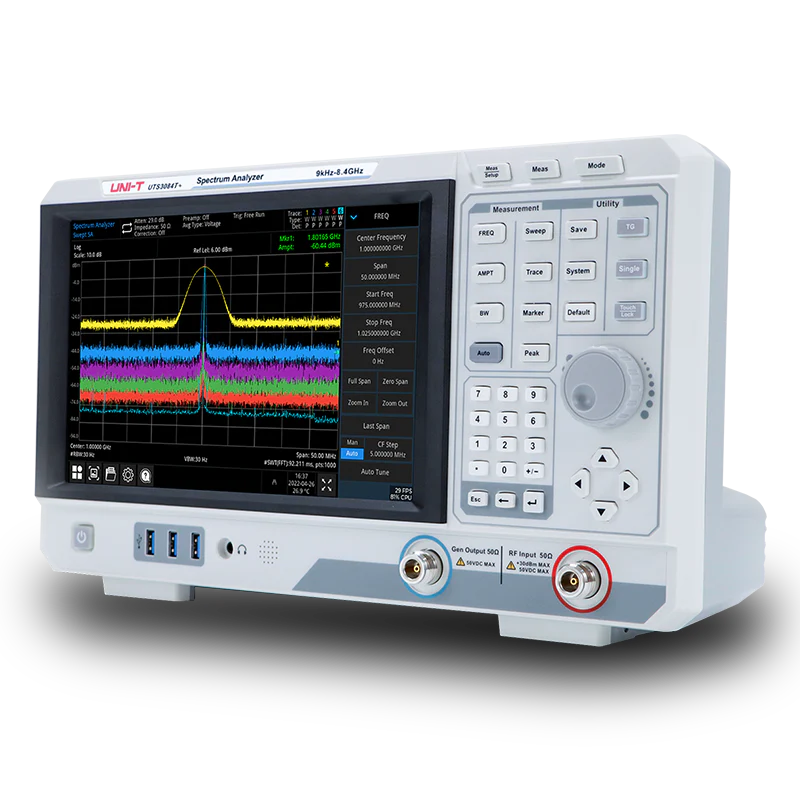

- Display: 10.1-inch TFT LCD touchscreen – offers easy operation and vivid signal display
