UTS3021B 2.1GHz Performance-Series Spectrum Analyzer
Price Updated soon
In stock
About this item

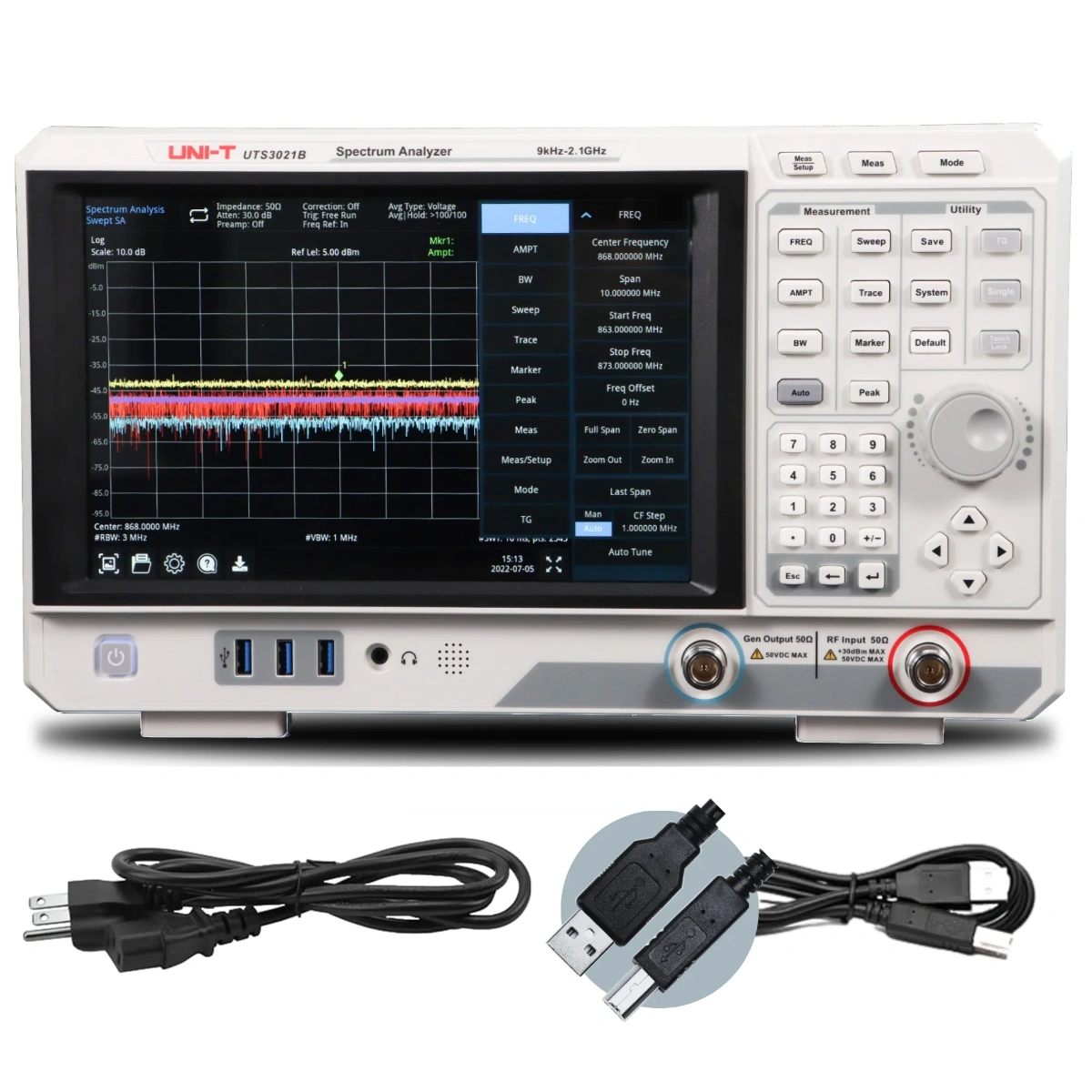

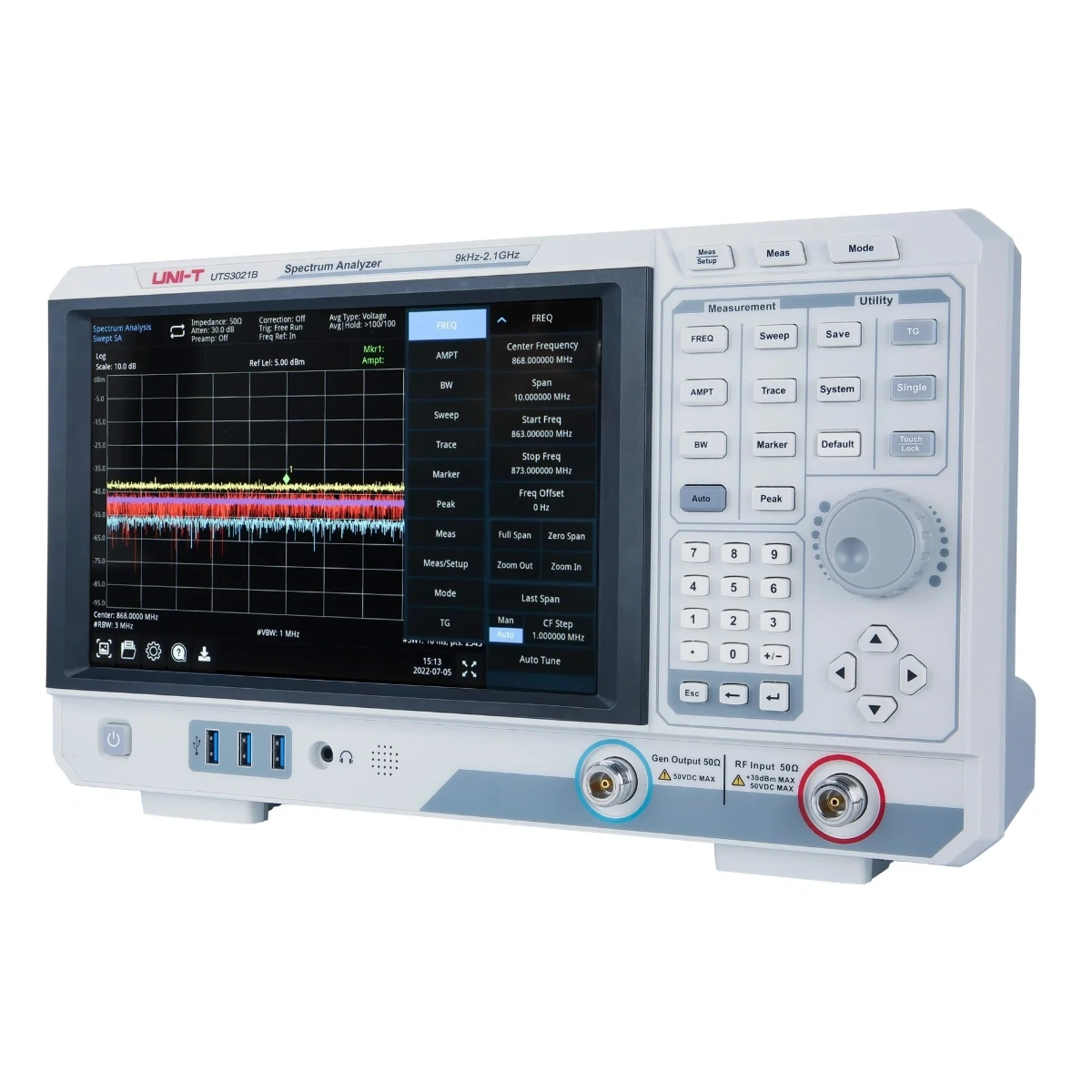

The UNI-Trend UTS3021B Performance-Series Spectrum Analyzer is an affordable 2.1GHz signal analyzer for EMI pre-compliance testing and a variety of other applications. Unlocking New Horizons with the UNI-T UTS3021B 2.1GHz Performance-Series Spectrum Analyzer In the ever-evolving field of electrical engineering, precision and adaptability are paramount. The UNI-T UTS3021B 2.1GHz Performance-Series Spectrum Analyzer is here to empower electrical engineers with its versatile capabilities. With a frequency range of 9kHz to 2.1GHz and optional tracking generator functionality, this instrument offers a wide array of benefits and applications for professionals in the field.
Product Features
- Frequency Measurement Range: 9 kHz ~ 2.1 GHz
- Display Average Noise Level: As low as -161 dBm (typical value)
- Phase Noise: <-98 dBc/Hz (Offset 10 kHz, typical value)
- Full Amplitude Accuracy: < 0.7 dB
- Scanning Points: Up to 40,001 points
- Minimum Resolution Bandwidth (RBW): 1 Hz
- Advanced Function: One-key measurement (optional)
- EMI Pre-Compliance Analysis Function: (optional)
- Analog Demodulation Analysis: (optional)
- Tracking Source Output Function: (optional)
- Display: 10.1-inch 1280 × 800 HD capacitive touch screen
- Interfaces: USB/LAN, SCPI protocol support
