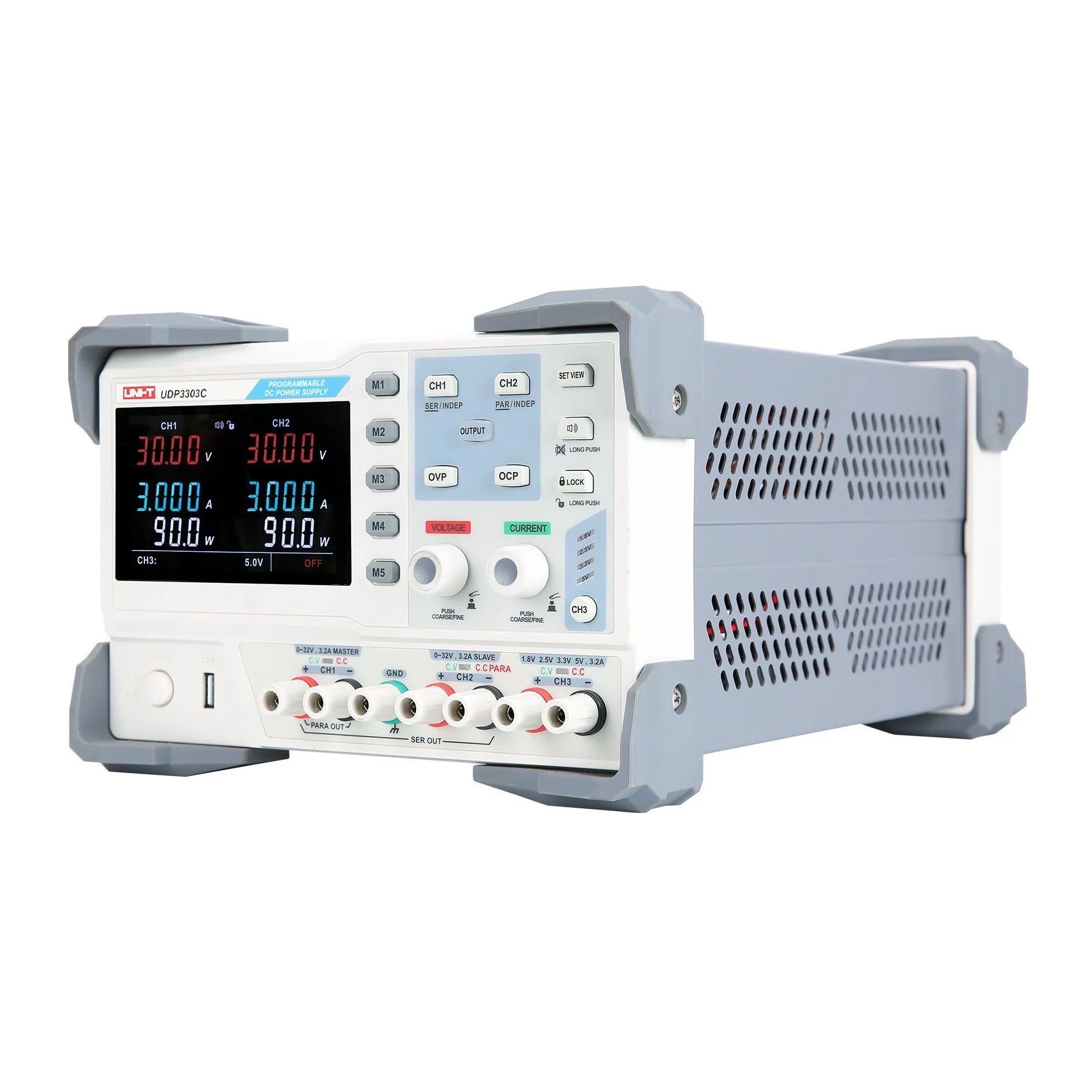

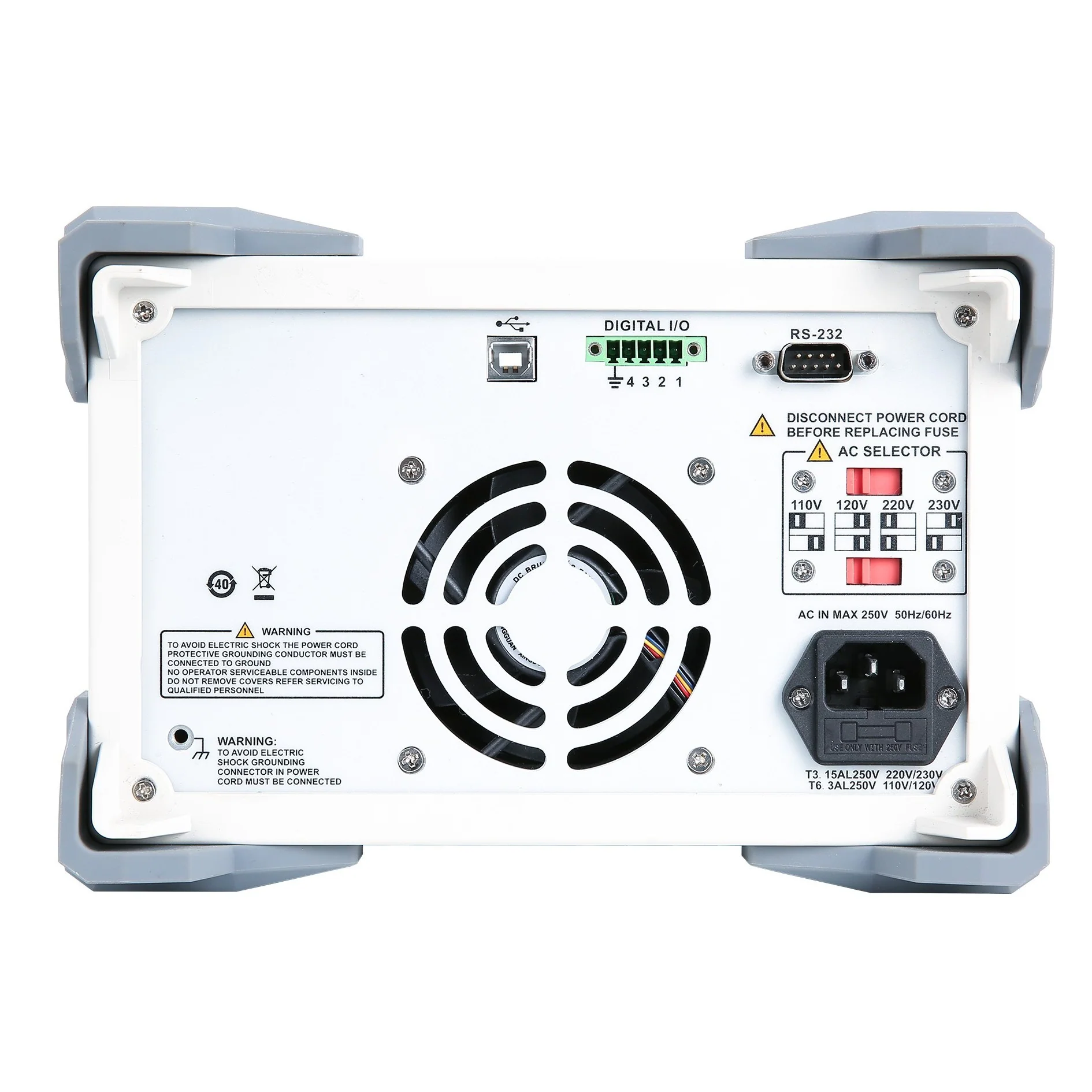

UDP3303C 3Ch Classic-Series Programmable Linear DC Power Supply
Price Updated soon
In stock
About this item
UDP3303C 3Ch Classic-Series Programmable Linear DC Power Supply A cost-effective program control DC supply with outstanding performance, reliable output, and clear interface. The UDP3000 Series Programmable DC power supply is a cost-effective program control DC power supply with outstanding performance, reliable output and clear interface. The UDP3303C DC power supply has three independent outputs. Two of them are adjustable outputs of 30V/3A, the other one is a fixed selectable output of 1.8V/2.5V/3.3V/5V/3A (fine adjustable). With the constant voltage (CV) and constant current (CC) modes,short circuit and overvoltage protection features, the instrument can perfectly meet various test requirements.
Product Features
- Channels 3Ch
- Output Voltage 30V
- Output Current 3A
- Total Power 195W
- Max V Resolution 10mV
- Max A Resolution 1mA
- Connectivity RS-232, USB
- Setting Accuracy
- Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
- Warranty 3 years
- Shipping Dimensions (W×H×D) 445×365×300(mm)
- Shipping Weight 10.2Kg
- Documents English download guide, multi-language safety manual, calibration report (COC)

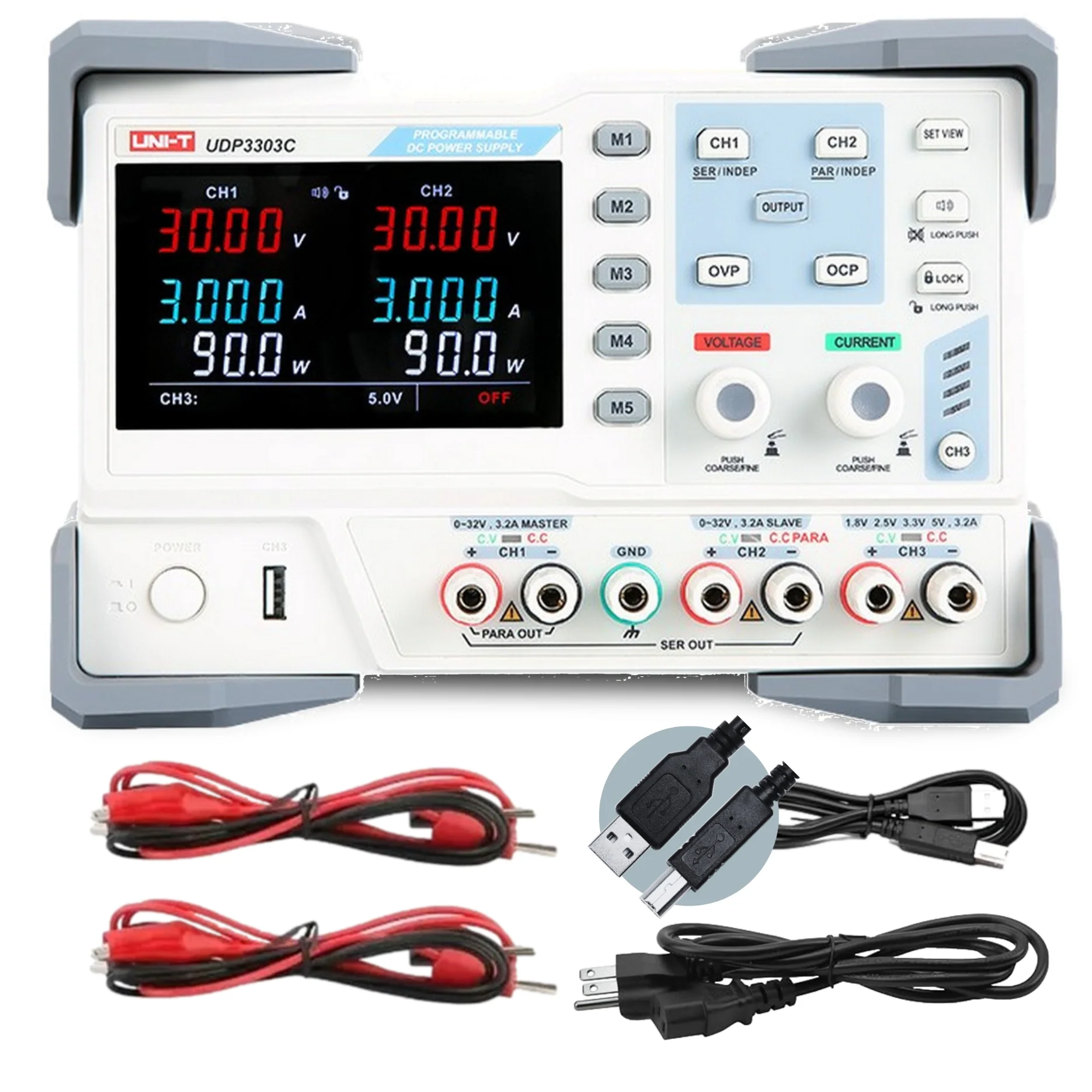

- Included Accessories Power cord, USB2.0 printing cable, Aligator Clip Test Line, RS232 Communication lines
