UDP6942B 360W DC Switching Power Supply 60V/15A
Price Updated soon
In stock
About this item
The UNI-Trend UDP6942B is a High-Performance programmable DC power supply is a diverse and cost-effective unit for teaching, scientific research, and measuring in the industrial field. The UNI-T UDP6900 series is a single-output programmable DC switching power supply designed to provide flexible voltage and current outputs within its rated power. This versatility allows it to handle both high-voltage/low-current and high-current/low-voltage tests with a single unit, significantly reducing costs and saving space. For example, the UDP6942B model (60V/15A/360W) can be configured for various combinations, such as 60V/6A/360W, 40V/9A/360W, or 24V/15A/360W, making it adaptable to a wide range of testing needs. Equipped with RS232, RS485, USB, and analog interfaces, the UNI-T UDP6900 series supports SCPI protocol for remote control and PLC integration, enabling the creation of intelligent test platforms. It is ideal for applications in DC-DC power module testing, battery charging, sensor evaluation, and other related fields, offering a powerful and flexible solution for engineers.
Product Features
- DC Voltage: 0–60V
- DC Current: 0–15A
- DC Power: 360W
- Type: Switching
- Resolution: 1mV/0.1mA
- Channels: One
- Class leading performance: High accuracy and resolution with low ripple and noise
- Multiple protection: OVP (Over Voltage Protection) and OCP (Over Current Protection)
- Easy to use: Voltage and current can be adjusted by the numeric keyboard and the encoder knob
- Programmable: Control the output of the voltage and current. Directly set your test scenario or use SCPI, Multi-SCPI, or Modbus RTU protocols

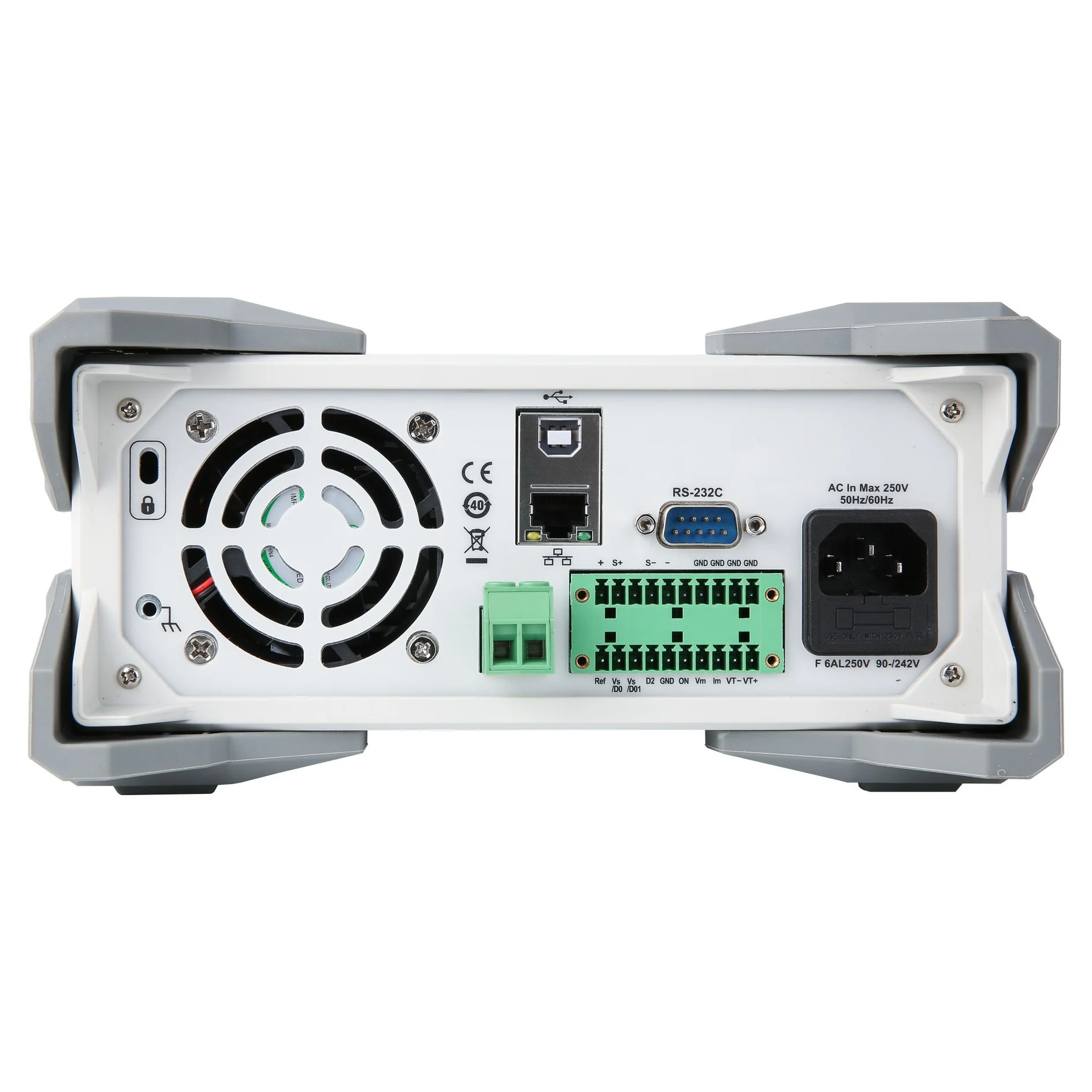

- Interfaces: RS232 & RS485 communication interfaces. LAN port supports Web remote control and VXI bus. USB Host and Device
- Rack mountable: Includes both front and rear panel connections
- Memory: Supports 18x8 group memory for saving and loading
- Output time control: Can be set (0.1–99999.9 seconds)
- Output slope control: Supports output voltage and current slope setting
- Digital voltmeter: Built-in 4 ½ digit voltmeter for outside measurement
- Remote sense: Used to avoid voltage drops due to long wires
- External controls: analog control and digital control
- Energy efficient: Build for high efficiency and low heat generation. Intelligent fan control saves energy

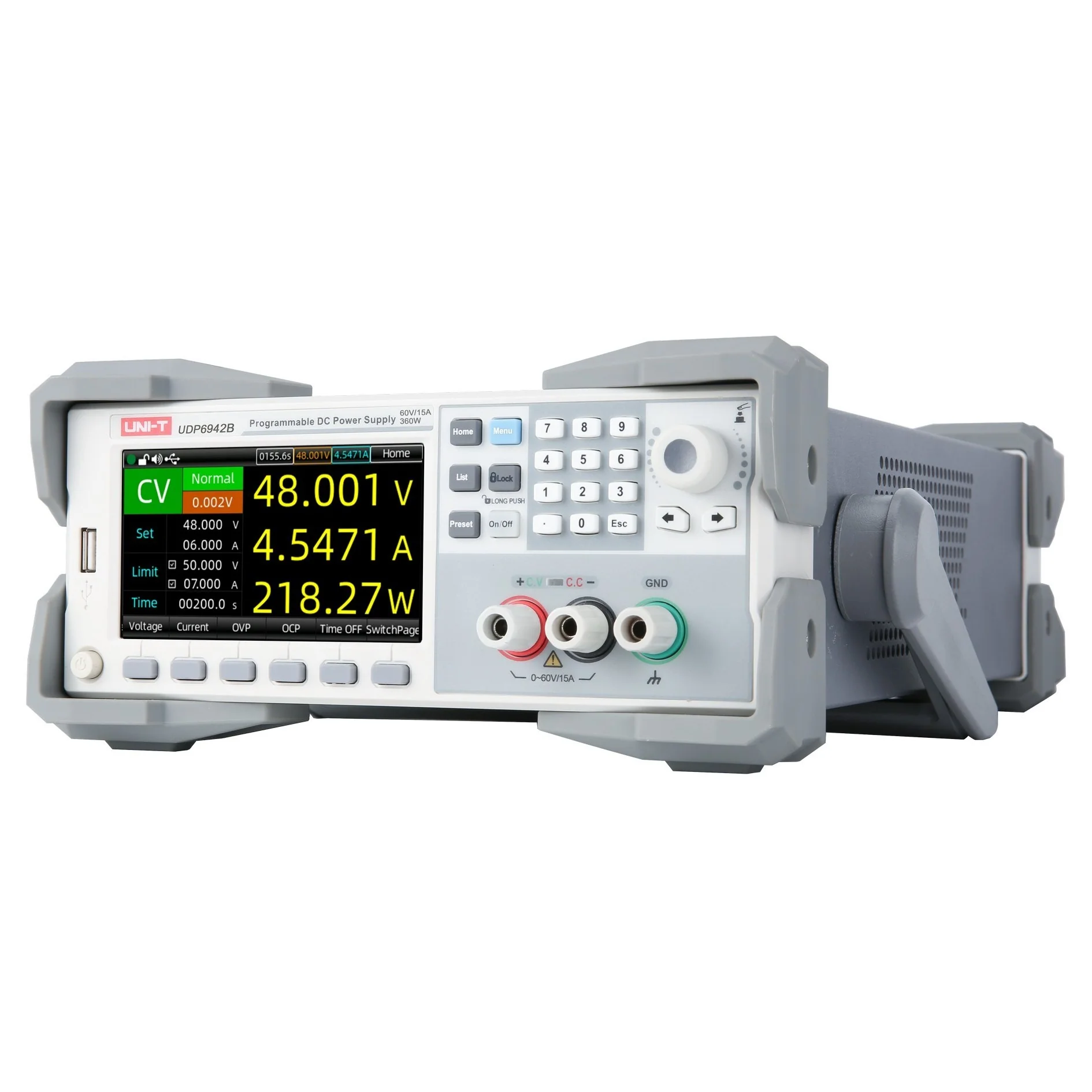

- Display: 4.3” TFT true color LCD. Simultaneous display of the set voltage and current, output voltage and current. Adjustable backlight
- Input voltage range: Supports 100 to 240V
