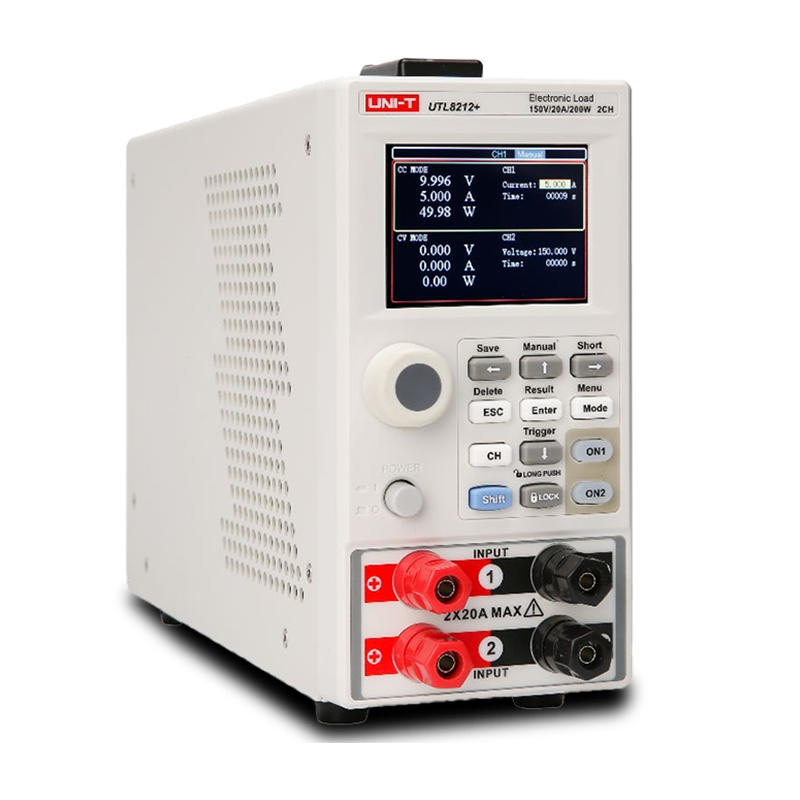

UNI-T UTL8212+ DC Electronic Load Dual Channel
Price Updated soon
In stock
About this item
UTL8200+ series electronic load is equipped with a 2.8-inch LCD display, which is easy to operate and stylish in appearance. Its test resolution is up to 1mV/1mA. Equipped with rich test functions and modes for you to choose. The equipment is equipped with RS232 communication module, which can flexibly meet various on-site test conditions, and is convenient for seamless connection with automated production lines and automatic test systems. The electronic load operates stably and has a wide range of applications, adapting to various testing requirements.
Product Features
- 2.8 inch 24-bit true color LCD
- The maximum power 200W x2, the maximum current 0~20A (single group channel), the maximum voltage 150V
- 8MHz synchronous current and voltage ADC sampling
- Dual Channel 200Wx2
- Measurement resolution is up to 1mV/1mA
- Foursomes CC/CV/CR/CP
- Dynamic current test is up to 5kHz
- Rising and falling rate of programmable current
- Analog short circuit analog function
- Multi-mode battery discharge
- List mode supports automatic test and quick unload
- Overvoltage, low voltage, overcurrent, overpower, overheat protection and anti-reverse connection warning
- Electrode-less servo, smart fans system
- Power cutoff memory

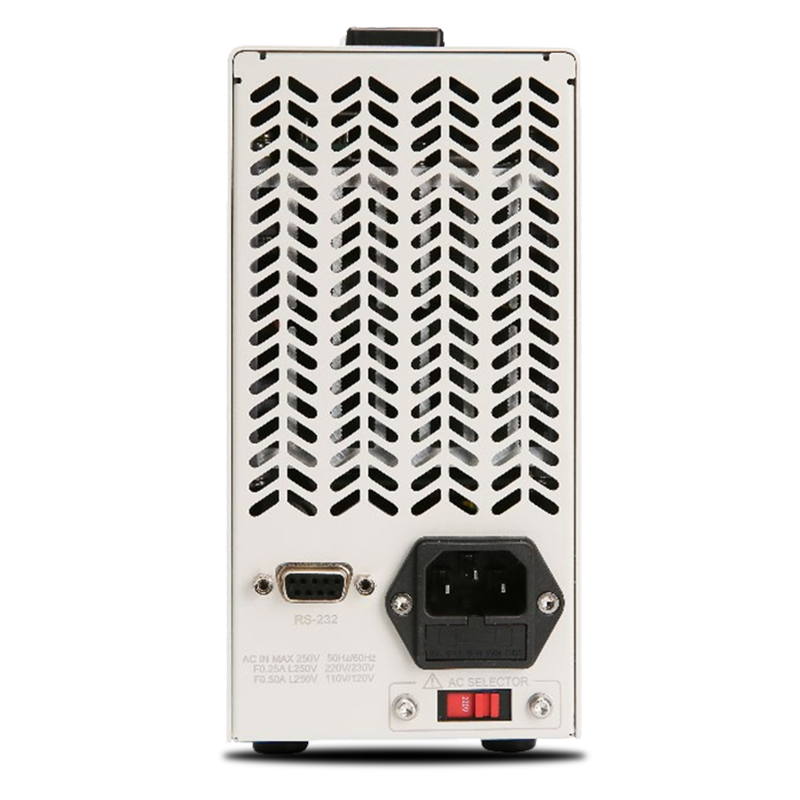

- Standard RS232 port (RS485 port optional)
- Standard SCPI protocol
- Matched computer software for remote control and monitor
Product Applications
- Industrial Testing.
- Automated Production Lines.
- Automatic Test Systems.
- Mobile Phone Battery Testing.
- Power Supply Testing.
- DC Power Measurement.
- Battery Discharge Analysis.
- Basic DC Load Applications.
- Dynamic Current Testing.
- Component Testing.
