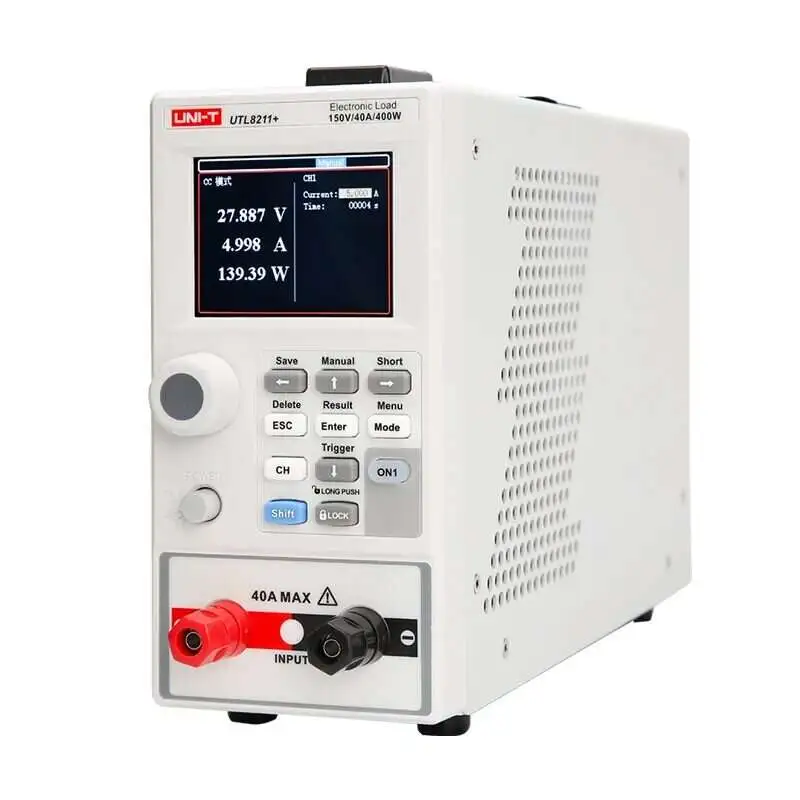

UNI-T UTL8211+ DC Electronic Load Single Channel
Price Updated soon
In stock
About this item
UNI-T UTL8211+ DC Electronic Load Single Channel UTL8200+ series electronic load is equipped with a 2.8-inch LCD display, which is easy to operate and stylish in appearance. Its test resolution is up to 1mV/1mA. Equipped with rich test functions and modes for you to choose. The equipment is equipped with RS232 communication module, which can flexibly meet various on-site test conditions, and is convenient for seamless connection with automated production lines and automatic test systems. The electronic load operates stably and has a wide range of applications, adapting to various testing requirements.
Product Features
- 2.8 inch 24-bit true color LCD
- The maximum power 400W, the maximum current 40A, the maximum voltage 150V
- 8MHz synchronous current and voltage ADC sampling
- Single channel 400W
- Measurement resolution is up to 1mV/1mA
- Four modes CC/CV/CR/CP
- Dynamic current test is up to 5kHz
- Rising and falling rate of programmable current
- Analog short circuit analog function
- Multi-mode battery discharge
- List mode supports automatic test and quick unload
- Overvoltage, low voltage, overcurrent, overpower, overheat protection and anti-reverse connection warning
- Electrode-less servo, smart fans system
- Power cutoff memory

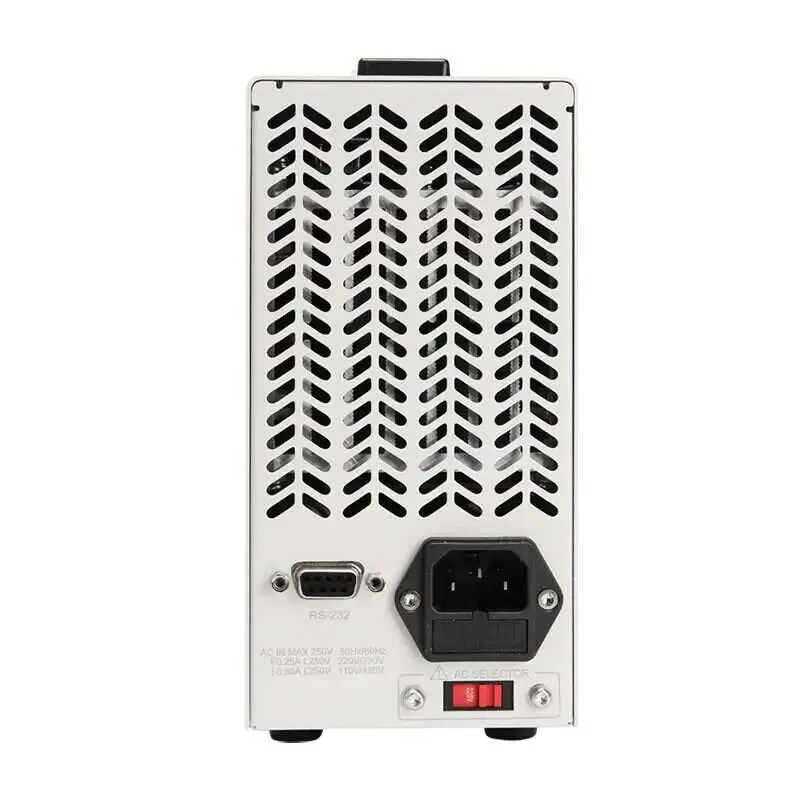

- Standard RS232 port (RS485 port optional)
- Standard SCPI protocol
Product Applications
- Power Supply Testing.
- Adapter/Charger Testing.
- Battery Testing.
- Lithium Battery Protection Board Testing.
- Automatic Test Equipment (ATE).
- Component Testing.
