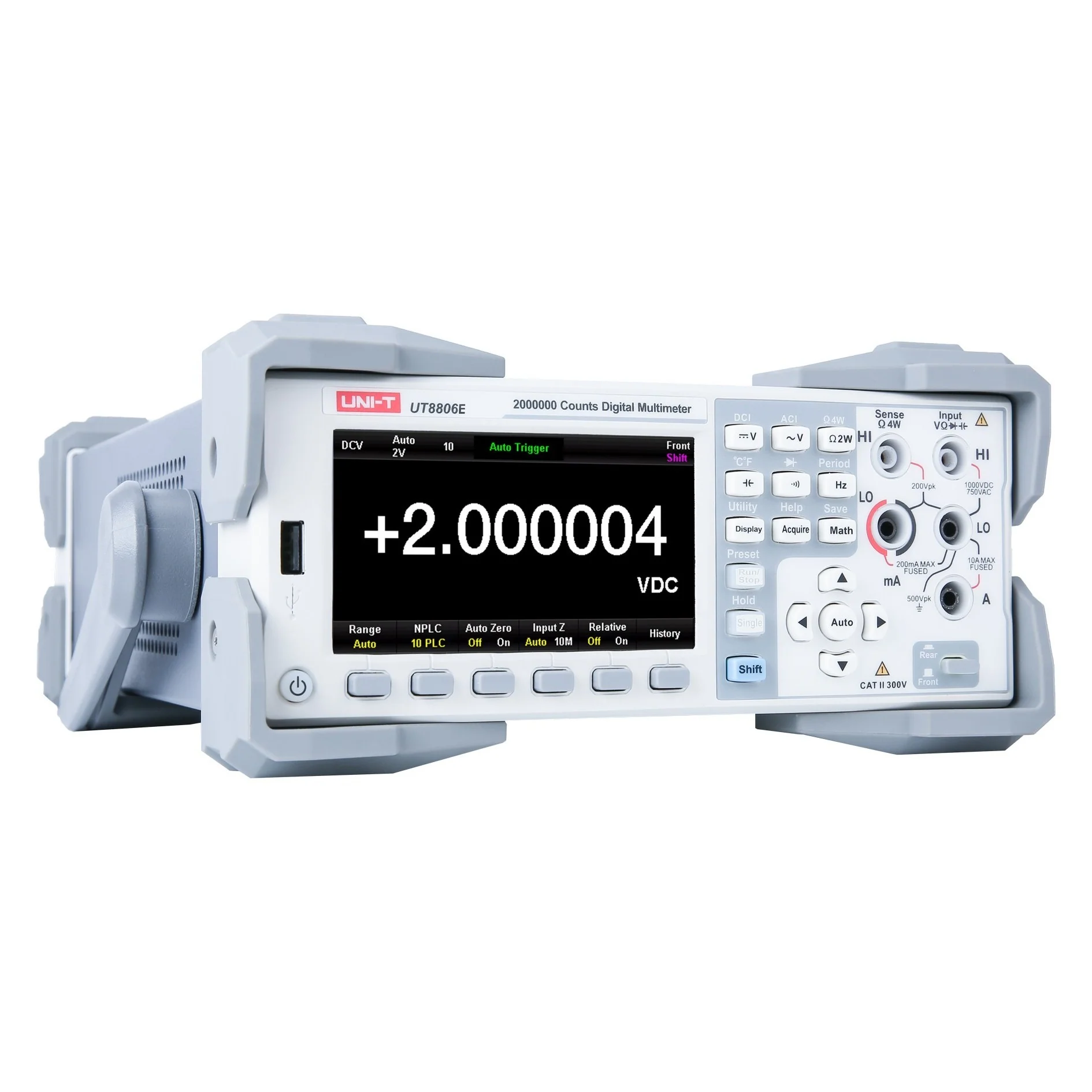

UT8806E 6.5 Digit Performance-Series Bench Digital Multimeter
Price Updated soon
In stock
About this item
Experience accuracy and efficiency with the UNI-T UT8806E Desktop Digital Multimeter. UT8806E-Counts Are you looking for unparalleled precision and accuracy in your measurements? Discover the UT8806E, a 6½ digit dual-display digital multimeter designed to meet your needs for multifunctionality, high precision, and automated measurements. Explore a groundbreaking standard in electrical measurement tools with the UT8806E, an auto-ranging, true RMS desktop digital multimeter. Find out how it can transform your engineering projects.
Product Features
- Max Reading: 2000000
- DC voltage measurement ranges: 200mV/2V/20V/200V/1000V
- DC current measurement ranges: 2μA/20μA/200μA/2mA/20mA/200mA/2A/10A
- DC voltage accuracy: 0.0035%+0.0006%
- AC voltage measurement ranges (RMS): 200mV/2V/20V/200V/750V
- AC current measurement ranges (RMS): 200μA/2mA/20mA/200mA/2A/10A
- Resistance measurement ranges (2-wire, 4-wire): 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10mΩ/100Ω/1GΩ
- Capacitance measurement ranges: 2nF/20nF/200nF/2μF/200μF/2mF/20mF/100mF
- Conduction Range: 2000Ω 1mA
- Diode Range: 4V 1mA
- Frequency measurement: 3Hz to 1MHz
- Data Storage: 10k 32Gb Nand Flash
- Temperature measurement: Support both thermocouple & thermal resistance sensor
- Maximum reading rate: 10k rdgs/s
- Protocol: SCPI
