UNI-T UT8805E Digital Bench Multimeter
Price Updated soon
In stock
About this item

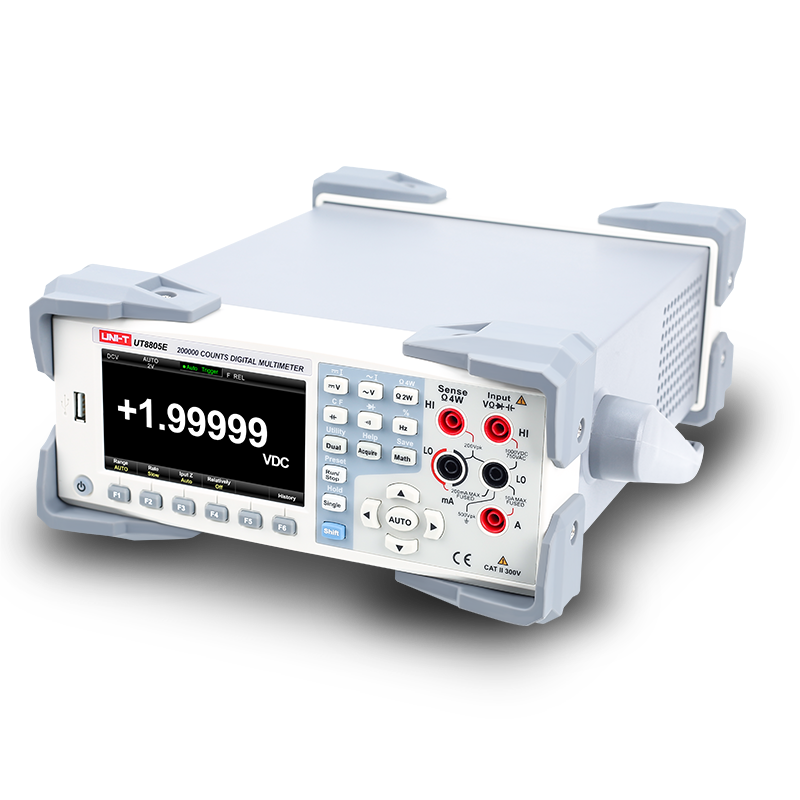

The UT8805E is a 200 000‑count benchtop digital multimeter engineered for precision and versatility in laboratory, R&D, and automated test settings. Its full‑auto measurement system spans DC/True‑RMS AC voltage, DC/True‑RMS AC current, resistance (2‑ and 4‑wire), capacitance, frequency, cycle time, continuity, diode test and temperature via thermocouple or RTD sensors. A vibrant 4.3″, 480 × 272‑pixel TFT display offers dual‑channel readouts, graphical trend/histogram/bar charts and bilingual (Chinese/English) on‑screen help. Up to 5000 readings per second can be stored in its internal 1 GB NAND flash or on an external USB drive. Interfaces include USB Device/Host, LAN, RS‑232C and optional GPIB, all SCPI‑compatible for easy integration. TTL‑compatible trigger I/O and statistical functions (min/max/avg/std dev, pass/fail, dB/dBm) enhance automated workflows. Universal 90–264 VAC input, ≤ 20 W dissipation, IEC safety (CAT II 300 V / CAT I 1000 V) and EMC compliance make it reliable in varied environments.
Product Features
- 200 000‑count resolution.
- True‑RMS AC V/A measurement.
- Up to 5000 readings/s.
- 4.3″ TFT 480 × 272 display, dual‑channel.
- 1 GB NAND flash + USB‑drive storage.
- Bilingual menu & built‑in help.
- SCPI‑compatible remote control (USBTMC, VXI‑11).
- Dual display, histogram/trend/bar charts.
- TTL‑compatible trigger I/O.
- Chinese & English interface.

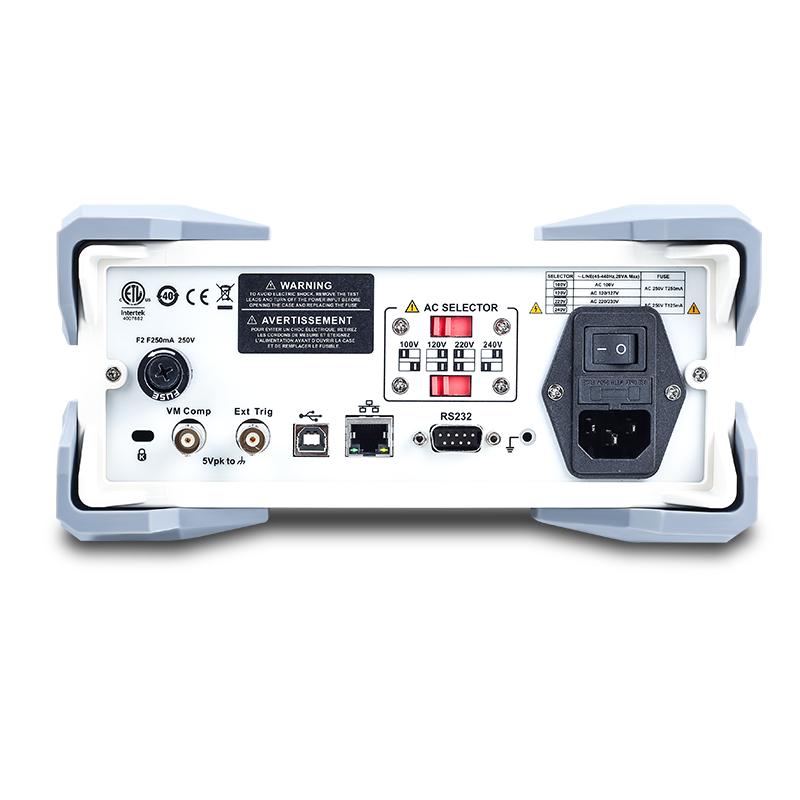

- LAN, USB Host/Device, RS‑232C, optional GPIB.
- Pass/Fail, dB/dBm, statistical functions.
- CAT II 300 V / CAT I 1000 V safety rating.
Product Applications
- Research and education.
- Research and development.
- Detection and maintenance.
- Calibration.
- Automated testing.
