UNI-T UTR2810E+ LCR Digital Meter

Price 12,033.00 EG

In stock

About this item

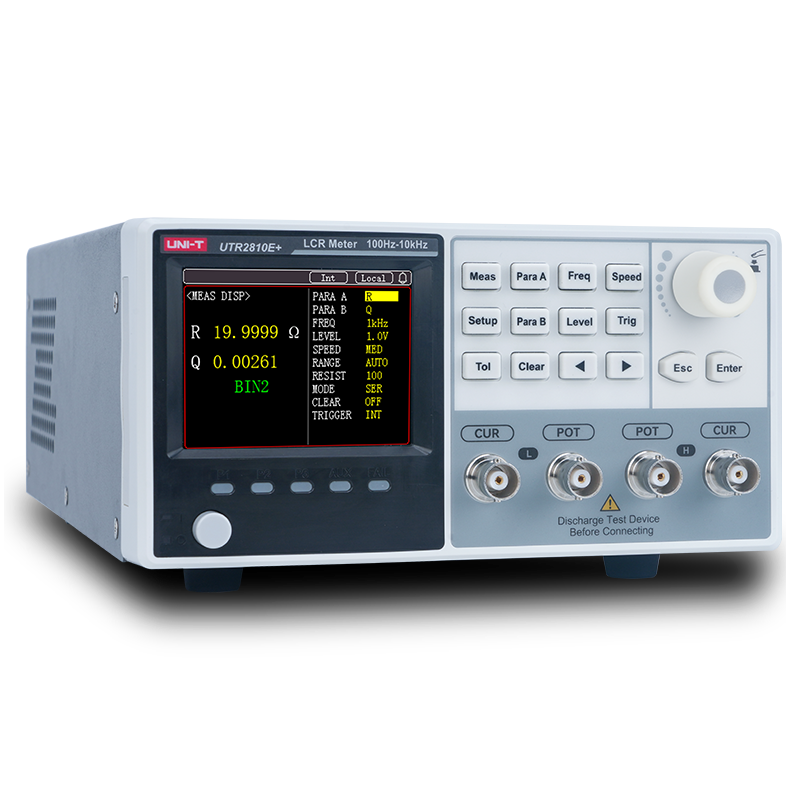

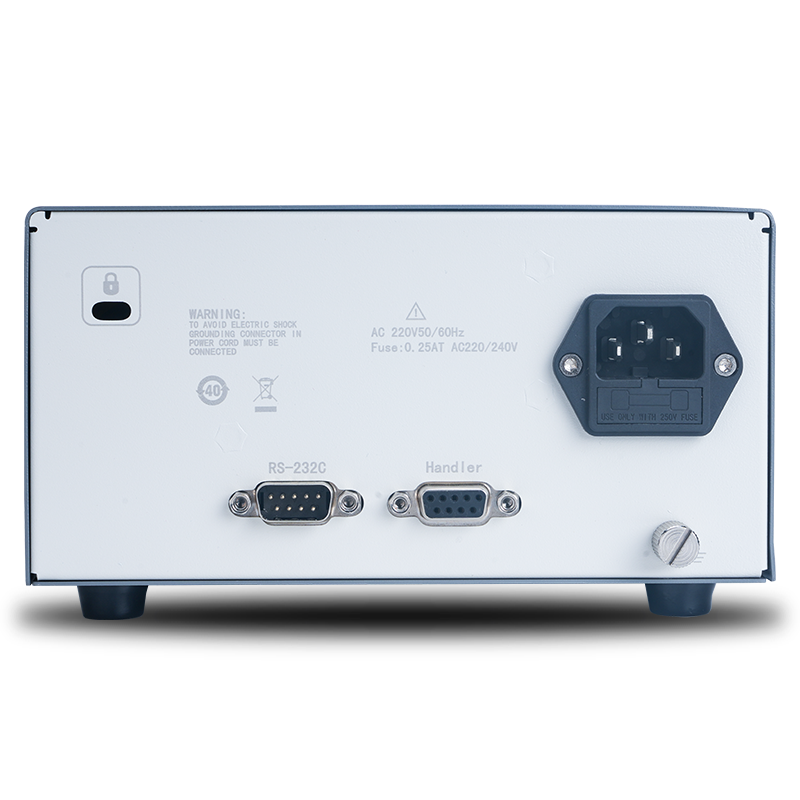

The UNI‑T UTR2810E+ is a next‑generation low‑frequency LCR digital bridge designed for precision component measurement in both production and laboratory settings. Housed in a sleek, compact chassis, it combines a high‑resolution 2.8″ full‑color TFT display with intuitive rotary and function keys, delivering clear, multi‑window readouts of primary and secondary parameters. Built around a 32‑bit MCU and a fast A/D converter, the UTR2810E+ offers rapid test cycles (up to 33 readings per second) and stable readings even on fluctuating signals. True‑RMS capability ensures accurate tracking of complex waveforms, while auto/manual ranging and user‑selectable averaging filters smooth out noise. Four standard test frequencies (100 Hz, 120 Hz, 1 kHz, 10 kHz) and three signal‑level options (0.1 V, 0.3 V, 1.0 V) cover a wide spectrum of passive components. Series or parallel equivalent‑circuit modes let you tailor measurements to component characteristics, and open‑/short‑circuit zeroing eliminates lead and fixture errors. Beyond benchtop use, the UTR2810E+ integrates seamlessly into automated test systems via RS‑232/Handler interfaces (SCPI/Modbus), supporting external and bus‑triggered acquisition. Four‑gear comparator sorting with BIN1–BIN3, AUX and NG outputs accelerates production‑line QC. Silicone‑protected corners and fold‑out feet add durability and hands‑free operation, making the UTR2810E+ a versatile tool for quality assurance, incoming‑inspection, and automated production environments.
