UT622C 100MHz LCR Meter
Price Updated soon
In stock
About this item

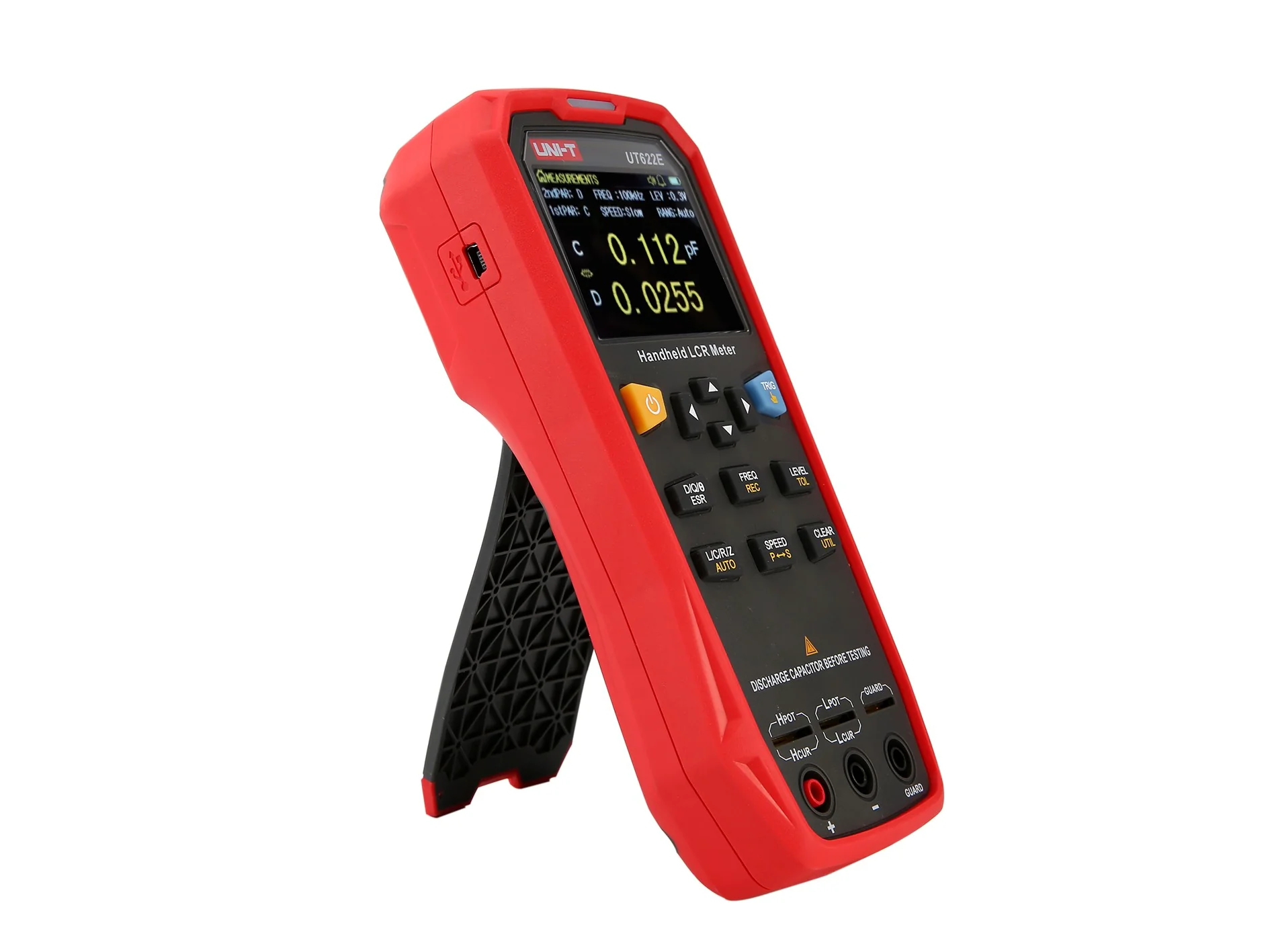

UNI-T UT622C Handheld LCR Meter | Professional Component Testing Solution Overview The UNI-T UT622C handheld LCR meter delivers professional-grade component testing capabilities with exceptional precision and versatility for electronics professionals and researchers. This advanced instrument combines laboratory-quality 0.1% measurement accuracy with an impressive frequency range extending to 100kHz, making it ideal for comprehensive component characterization across diverse applications. The high-performance measurement engine achieves up to 20 measurements per second, dramatically accelerating testing workflows while maintaining measurement integrity. Featuring a brilliant 2.8-inch TFT LCD display with high-brightness white backlight and powered by a robust 1800mAh lithium polymer battery providing 8 hours of continuous operation, the UT622C delivers professional measurement capabilities in a field-portable package.
Product Features
- Professional Frequency Coverage - Five precise test frequencies from 100Hz to 100kHz for thorough component analysis across the frequency spectrum
- Laboratory-Grade Precision - Achieves up to 0.1% measurement accuracy for research and quality control applications
- High-Performance Testing - Maximum measurement rate of 20 tests per second for efficient batch testing and production screening
- Comprehensive Parameter Suite - Complete primary parameters (L/C/R/Z) and secondary parameters (D/Q/θ/ESR) for detailed component evaluation
- Advanced Kelvin Test System - Professional four-terminal test leads (UTR-L100k-H) included for superior measurement accuracy
- Flexible Signal Levels - Three selectable test signal amplitudes (0.1Vrms, 0.3Vrms, 1Vrms) for optimal component characterization
- Stable Output Impedance - Consistent 100Ω output impedance across all frequencies ensures reliable measurements
- Intelligent Component Recognition - Auto LCR function automatically determines component type for streamlined operation
- Precision Tolerance Analysis - Adjustable tolerance range from 1% to 20% with visual LED pass/fail indication
- Versatile Circuit Modeling - Series and parallel equivalent circuit modes for accurate component representation
- Advanced Compensation - Open/short circuit clearing correction eliminates parasitic effects for maximum precision
- PC Connectivity - Standard Mini-USB interface with industry-standard SCPI command support
- Portable Professional Design - Compact 93mm × 192mm × 44mm form factor weighing just 420g
Product Applications
- Production line quality assurance.
- Incoming material inspection.
- Automated production systems.
