MSO3024HD 12-Bit 200MHz 4Ch Mixed Signal Oscilloscope
Price Updated soon
In stock
About this item

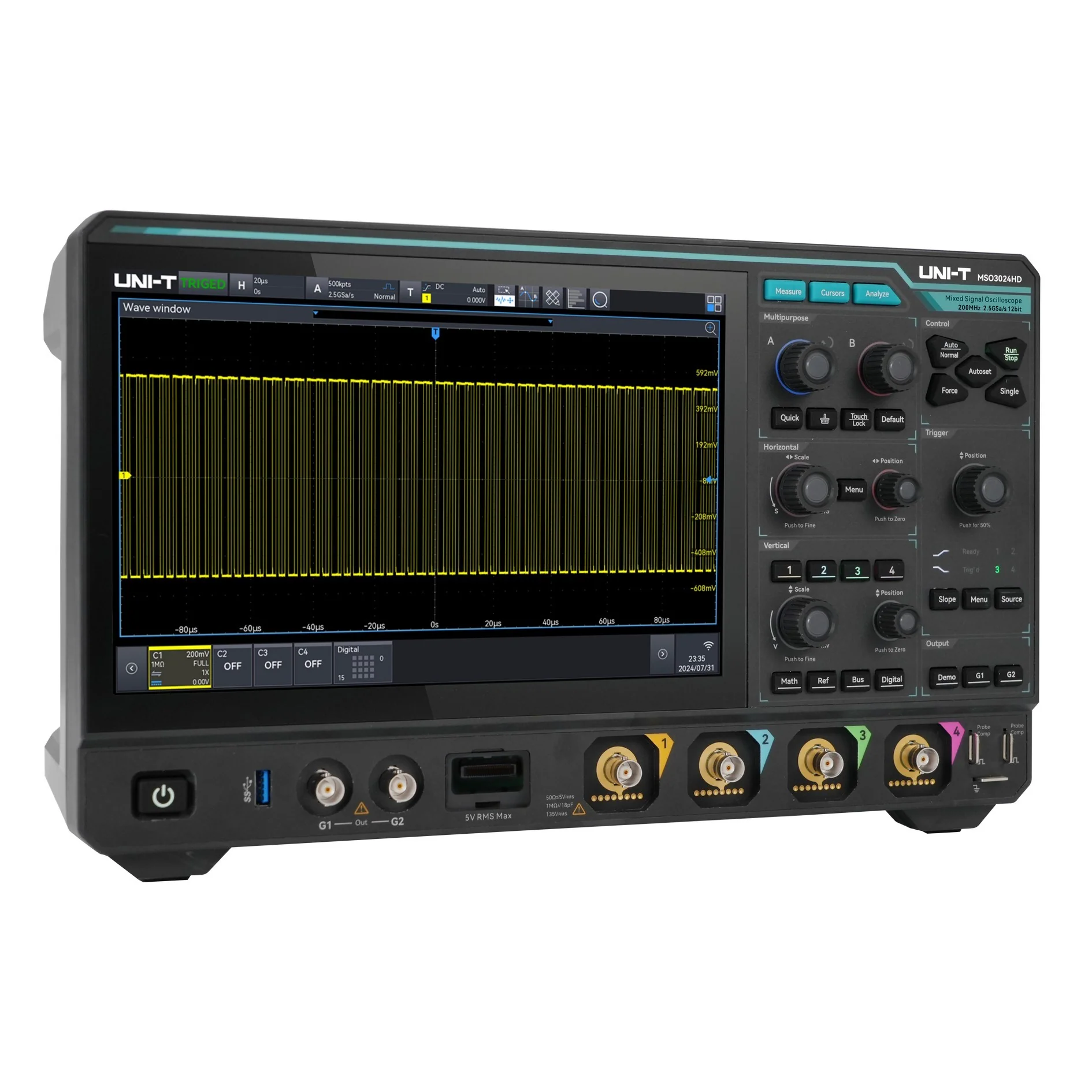

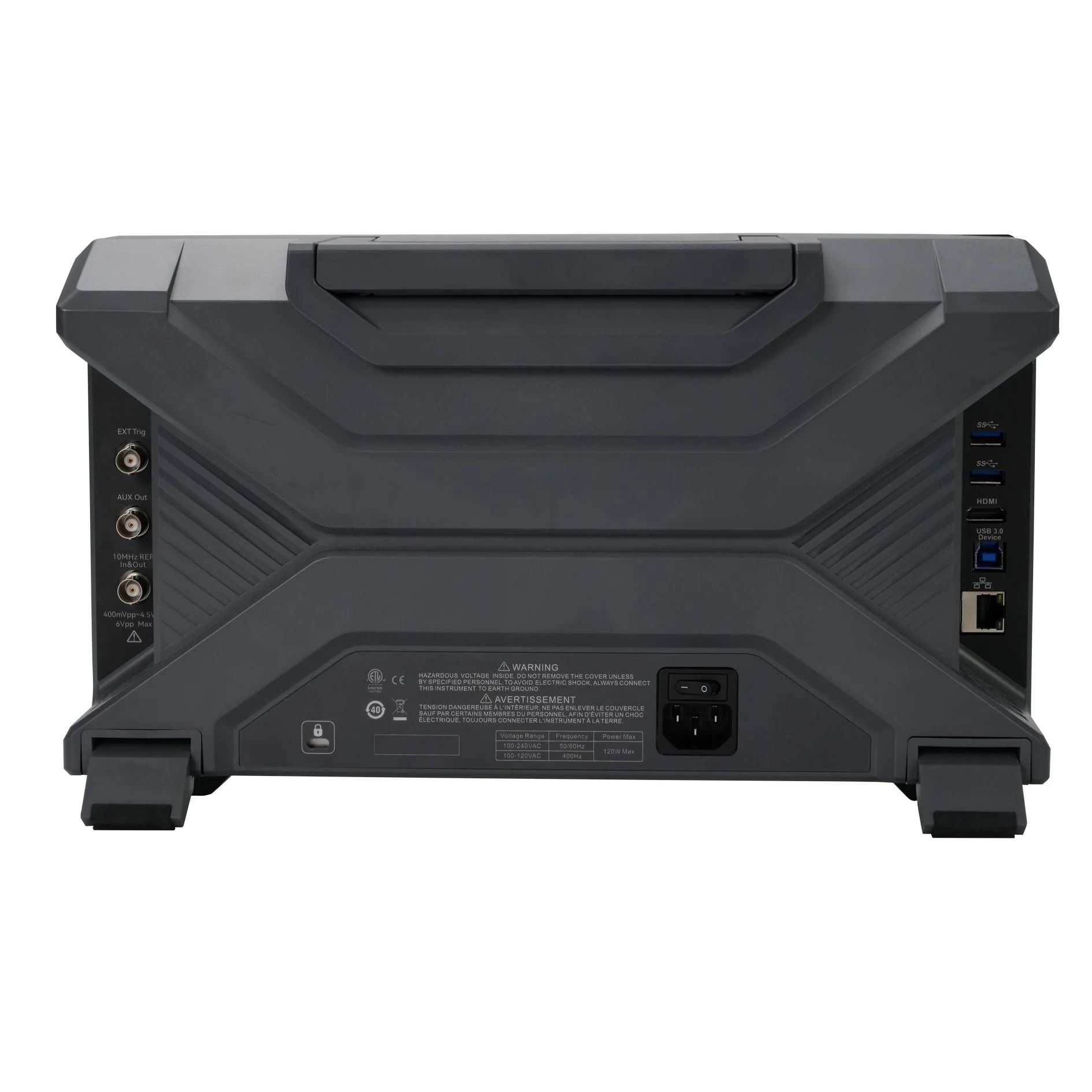

UNI-T MSO3024HD | 200MHz High-Resolution Mixed Signal Oscilloscope Overview The UNI-T MSO3024HD High-Resolution Oscilloscope delivers accessible precision for engineers and technicians seeking reliable measurements in today's electronic systems. With a solid 200 MHz bandwidth, 2.5 GSa/s real-time sampling rate, and sophisticated 12-bit vertical resolution, this entry-level professional instrument provides 16 times greater vertical precision than conventional 8-bit oscilloscopes. The MSO3024HD features 4 analog channels and 16 digital channels with an impressive 500 Mpts storage depth, creating an affordable yet powerful solution for debugging embedded systems, educational applications, and general electronic design. Equipped with UNI-T's innovative Ultra Phosphor 3.0 technology, the MSO3024HD achieves excellent waveform capture rates of up to 1,500,000 wfms/s with 256 levels of gray temperature colors. The responsive digital trigger system ensures reliable triggering with minimal jitter, while the user-friendly 10.1-inch capacitive touch screen with multi-gesture support makes operation intuitive for users of all experience levels. The comprehensive nine-in-one functionality provides exceptional value for educational institutions, small businesses, and engineers working with diverse electronic systems.
Product Features
- Analog Bandwidth 200 MHz
- Rise Time (10-90%, typical) ≤1.80 ns
- Channels 4 analog + 16 digital + 2 generator outputs
- Maximum Sampling Rate 2.5 GSa/s (analog), 1.25 GSa/s (digital)
- Vertical Resolution 12-bit (up to 16-bit with ERES)
- Maximum Memory Depth 500 Mpts (analog), 250 Mpts (digital)
- Waveform Capture Rate 500,000 wfms/s (normal), 1,500,000 wfms/s (sequence)
- Input Impedance 1 MΩ ±2% ∥ 18 pF ±3 pF or 50 Ω ±1.5%
- Vertical Scale Range 500 μV/div to 10 V/div (1 MΩ), 500 μV/div to 1 V/div (50 Ω)
- Time Base Range 2 ns/div to 1 ks/div
- Display 10.1-inch 1280×800 HD capacitive multi-touch screen
- Dimensions (W×H×D) 364 mm × 209 mm × 106 mm
- Weight 3.83 kg
Product Applications
- General Electronic Design and Testing
- Field Service and Maintenance
- Educational and Training Environments
- Field Service and Maintenance
