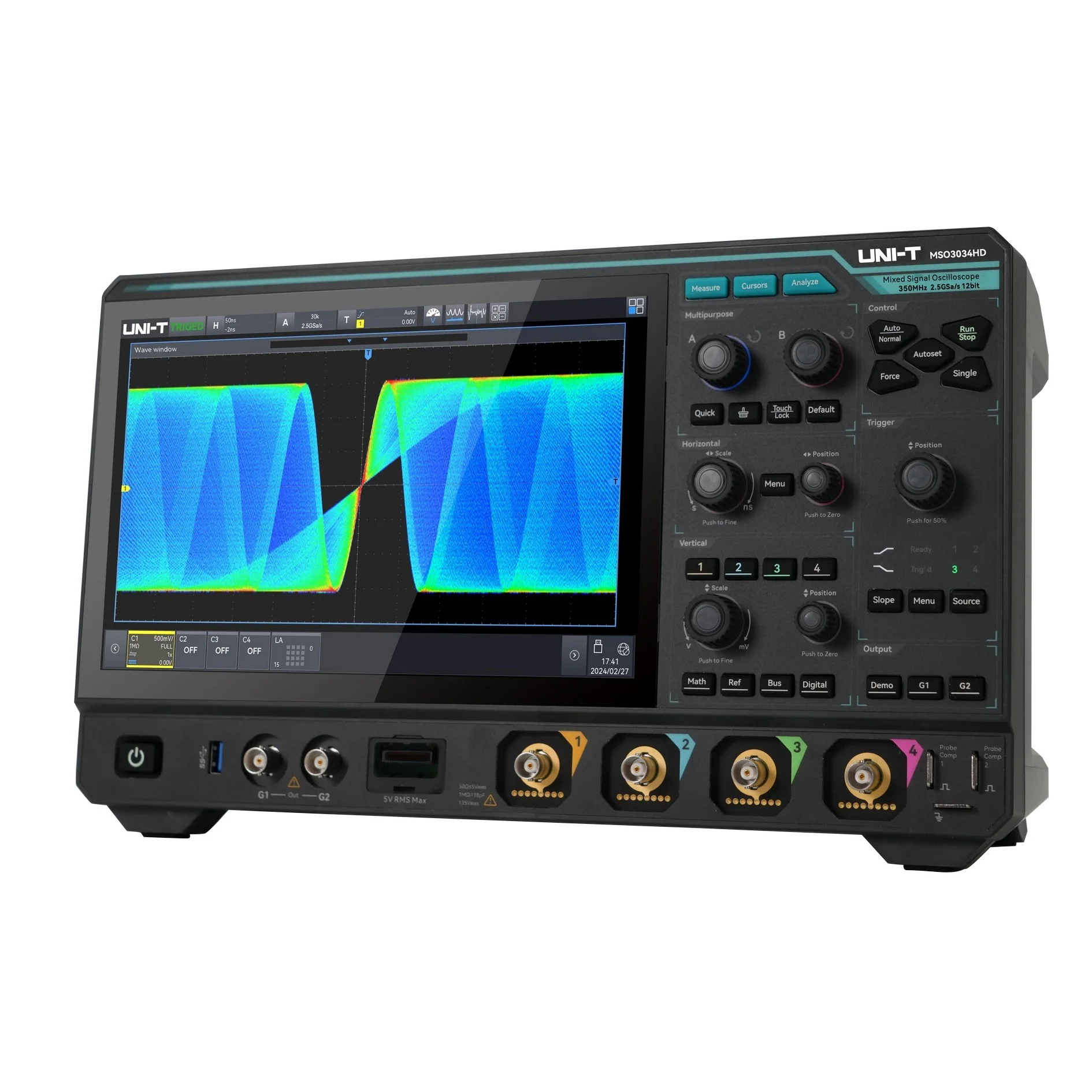

MSO3034HD 12-Bit 350MHz 4Ch Mixed Signal Oscilloscope
Price Updated soon
In stock
About this item
UNI-T MSO3034HD | 350MHz High-Resolution Mixed Signal Oscilloscope Overview The UNI-T MSO3034HD High-Resolution Oscilloscope delivers exceptional signal analysis capabilities for engineers and technicians requiring precise measurements in modern electronic systems. With a powerful 350 MHz bandwidth, 2.5 GSa/s real-time sampling rate, and advanced 12-bit vertical resolution, this professional instrument provides 16 times greater vertical detail than standard 8-bit oscilloscopes. The MSO3034HD features 4 analog channels and 16 digital channels with an impressive 500 Mpts storage depth, creating the perfect solution for analyzing complex embedded systems, communications equipment, and precision analog circuits. Powered by UNI-T's cutting-edge Ultra Phosphor 3.0 technology, the MSO3034HD achieves remarkable waveform capture rates of up to 1,500,000 wfms/s with 256 levels of gray temperature colors. The sophisticated digital trigger system delivers high sensitivity with minimal jitter, ensuring dependable triggering on complex signals. The responsive 10.1-inch capacitive touch screen with multi-gesture support streamlines operation, while the comprehensive nine-in-one functionality maximizes your test equipment investment.
Product Features
- Analog Bandwidth 350 MHz
- Rise Time (10-90%, typical) ≤1.00 ns
- Channels 4 analog + 16 digital + 2 generator outputs
- Maximum Sampling Rate 2.5 GSa/s (analog), 1.25 GSa/s (digital)
- Vertical Resolution 12-bit (up to 16-bit with ERES)
- Maximum Memory Depth 500 Mpts (analog), 250 Mpts (digital)
- Waveform Capture Rate 500,000 wfms/s (normal), 1,500,000 wfms/s (sequence)
- Input Impedance 1 MΩ ±2% ∥ 18 pF ±3 pF or 50 Ω ±1.5%
- Vertical Scale Range 500 μV/div to 10 V/div (1 MΩ), 500 μV/div to 1 V/div (50 Ω)
- Time Base Range 1 ns/div to 1 ks/div
- Display 10.1-inch 1280×800 HD capacitive multi-touch screen
- Dimensions (W×H×D) 364 mm × 209 mm × 106 mm
- Weight 3.83 kg
Product Applications
- Communications Equipment Development
- Medical Device Engineering
- Industrial Control Systems
