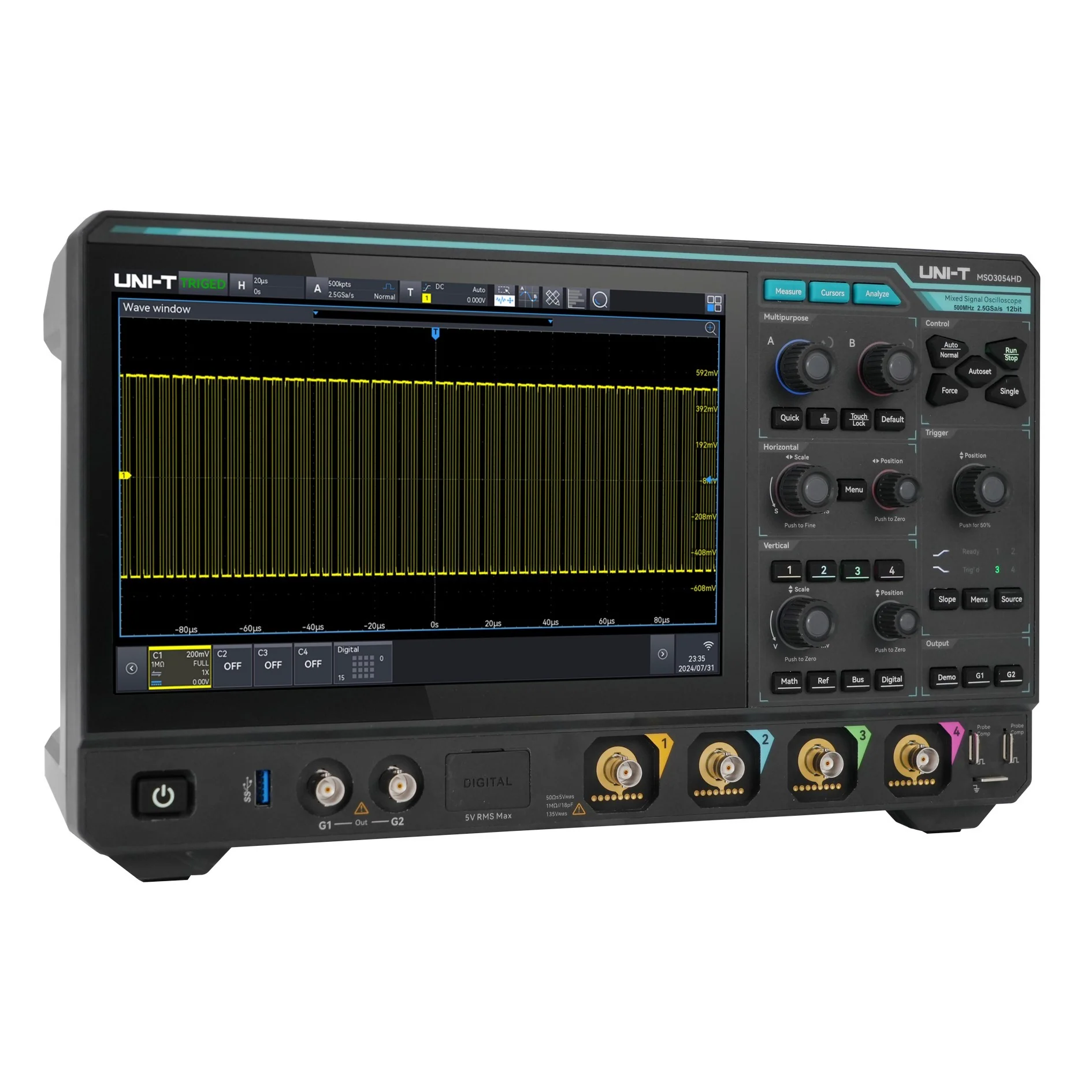

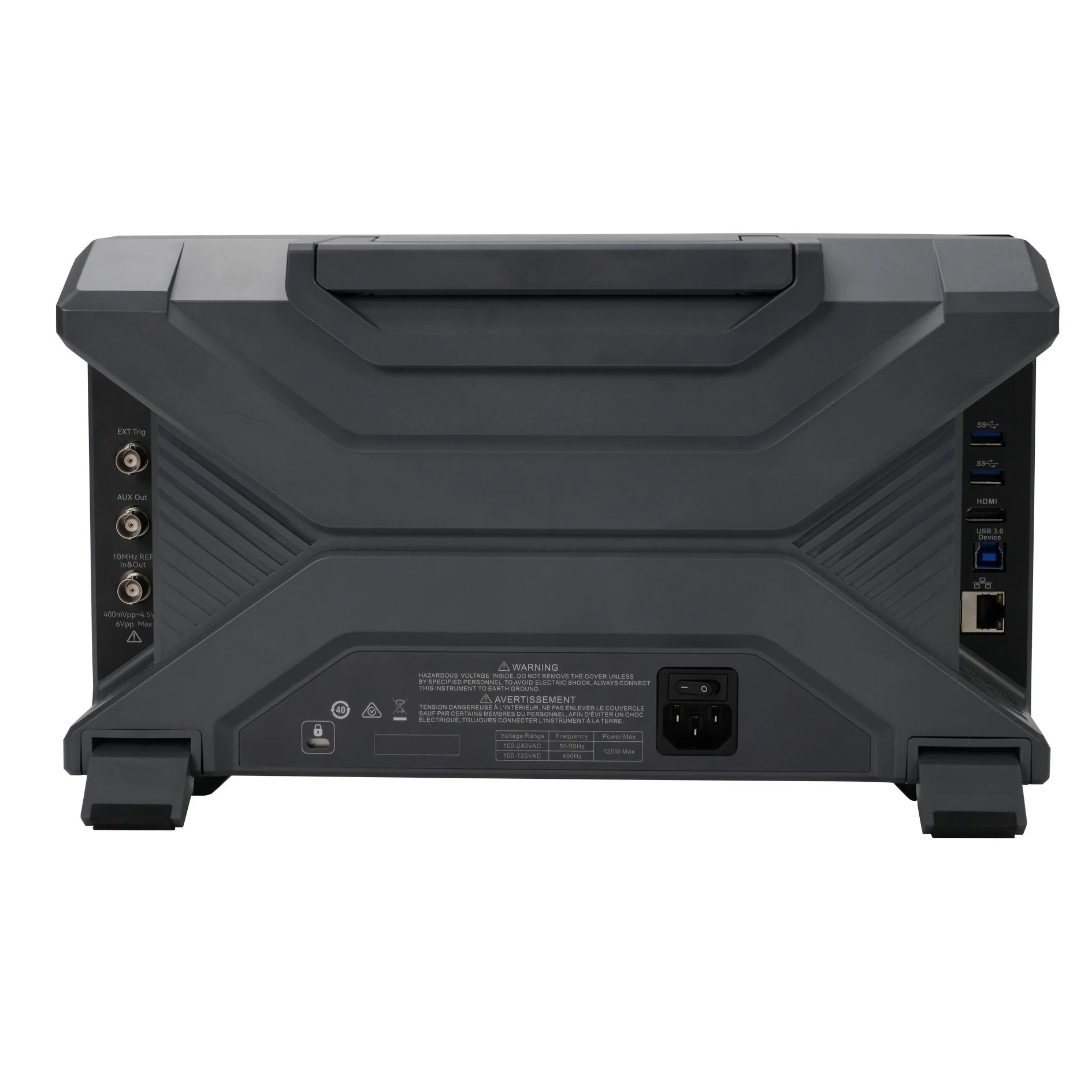

MSO3054HD 12-Bit 500MHz 4Ch Mixed Signal Oscilloscope
Price Updated soon
In stock
About this item
UNI-T MSO3054HD | 500MHz High-Resolution Mixed Signal Oscilloscope Overview The UNI-T MSO3054HD High-Resolution Oscilloscope delivers unparalleled signal analysis capabilities for engineers and technicians demanding precise measurements in complex electronic systems. With an impressive 500 MHz bandwidth, 2.5 GSa/s real-time sampling rate, and groundbreaking 12-bit vertical resolution, this professional-grade instrument provides 16 times more vertical detail than conventional 8-bit oscilloscopes. The MSO3054HD combines 4 analog channels and 16 digital channels with a massive 500 Mpts storage depth, making it the ideal solution for debugging advanced embedded systems, power electronics, and high-speed digital designs. Featuring UNI-T's exclusive Ultra Phosphor 3.0 technology, the MSO3054HD achieves an exceptional waveform capture rate of up to 1,500,000 wfms/s with 256 levels of gray temperature colors. The innovative digital trigger system offers high sensitivity and low jitter, ensuring reliable triggering on even the most challenging signals. The intuitive 10.1-inch capacitive touch screen with multi-gesture support simplifies complex operations, while the comprehensive nine-in-one functionality eliminates the need for multiple instruments in your workspace.
Product Features
- Analog Bandwidth 500 MHz
- Rise Time (10-90%, typical) ≤0.80 ns
- Channels 4 analog + 16 digital + 2 generator outputs
- Maximum Sampling Rate 2.5 GSa/s (analog), 1.25 GSa/s (digital)
- Vertical Resolution 12-bit (up to 16-bit with ERES)
- Maximum Memory Depth 500 Mpts (analog), 250 Mpts (digital)
- Waveform Capture Rate 500,000 wfms/s (normal), 1,500,000 wfms/s (sequence)
- Input Impedance 1 MΩ ±2% ∥ 18 pF ±3 pF or 50 Ω ±1.5%
- Vertical Scale Range 500 μV/div to 10 V/div (1 MΩ), 500 μV/div to 1 V/div (50 Ω)
- Time Base Range 500 ps/div to 1 ks/div
- Display 10.1-inch 1280×800 HD capacitive multi-touch screen
- Dimensions (W×H×D) 364 mm × 209 mm × 106 mm
- Weight 3.83 kg
Product Applications
- Automotive Electronics Development and Testing
- Power Electronics Analysis and Optimization
- High-Speed Digital Design Verification
