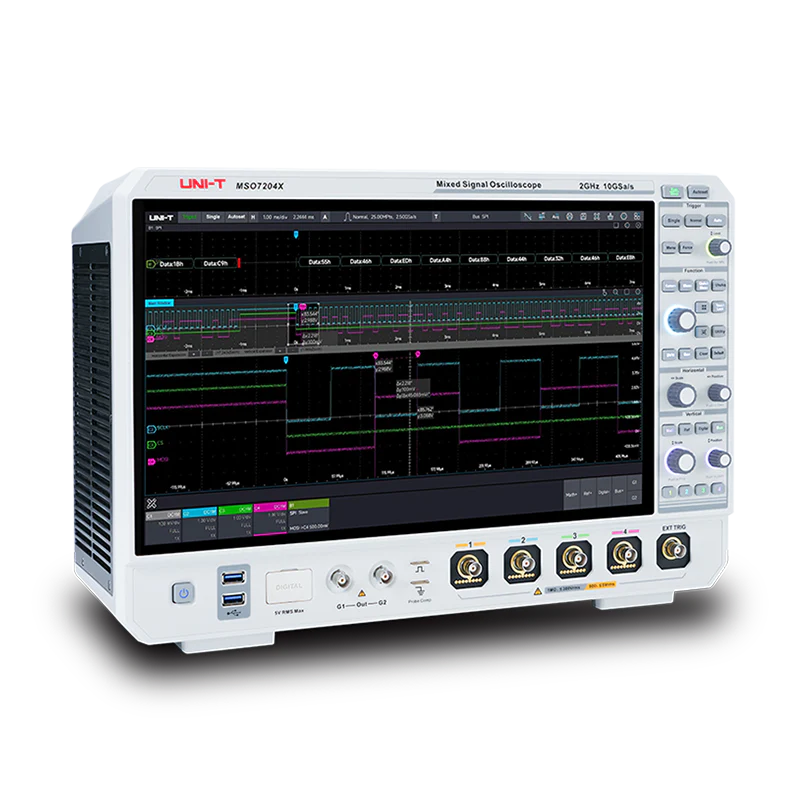

MSO7204X Mixed-signal Oscilloscope
Price Updated soon
In stock
About this item
MSO7000X series integrates 9 instrument functions, which includes Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Jitter/Eye Analyzer and Power Analyzer. This oscilloscope offers a cost-effective solution for advanced users.
Product Features
- Analog channel bandwidth: Up to 2 GHz
- Maximum sampling rate: 10 GSa/s
- Maximum storage depth: 1 Gpts (standard configuration)
- Waveform capture rate: ≥800,000 wfms/s (UltraAcq® mode), 2,000,000 wfms/s (Sequence mode)
- Multiple trigger types: Edge, pulse width, slope, video, code pattern, timeout, runt, setup & hold, delay, duration, Nth-edge
- Serial protocol analysis: 11 kinds: RS232/422/485/UART, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, SENT, MIL-STD-1553, ARINC 429, AudioBus (I2S/LJ/RJ/TDM)
- 7-in-1 Instrument: Digital oscilloscope, logic analyzer, spectrum analyzer, function/arbitrary waveform generator, digital voltmeter, frequency meter, protocol analyzer
- Parameter Measurements: 48 kinds, supports histogram, trace, and tendency chart
- Advanced Measurement Functions: Power analysis (optional), jitter & eye diagram (optional), template test, histogram
- Operating System: Windows 10 64-bit with a 15.6-inch high-definition capacitive touchscreen, supports gesture operations such as clicking, sliding, zooming, and dragging
- WebServer: Built-in, accessible via browser with PC/smartphone layouts, enabling cross-platform access
- SCPI Support: Standard command set for programmable instruments

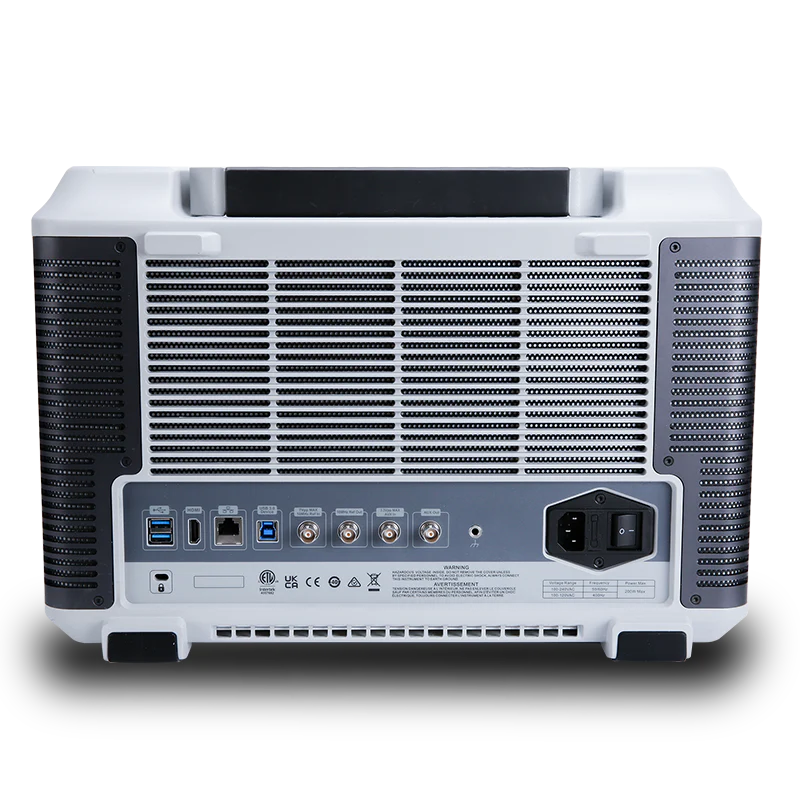

- Peripheral Interfaces: USB Host/Device, LAN, HDMI, AUX In/Out, 10 MHz Ref In/Out
- Waveform Operations: 8-channel waveform operation with built-in frequency spectrum analysis, peak search function, and enhanced resolution up to 3 bits
- Matlab Integration: Supports embedded programming and data presentation
- Waveform Generator: Built-in dual-channel function/arbitrary waveform generator with 60 MHz equivalent performance
- Logic Analyzer: 16-channel with 1.25 GSa/s sampling rate, 125 Mpts storage depth
Product Applications
- Patented UltraAcq® technology
- Unparalleled triggering capability
- Powerful mathematical waveform operations
